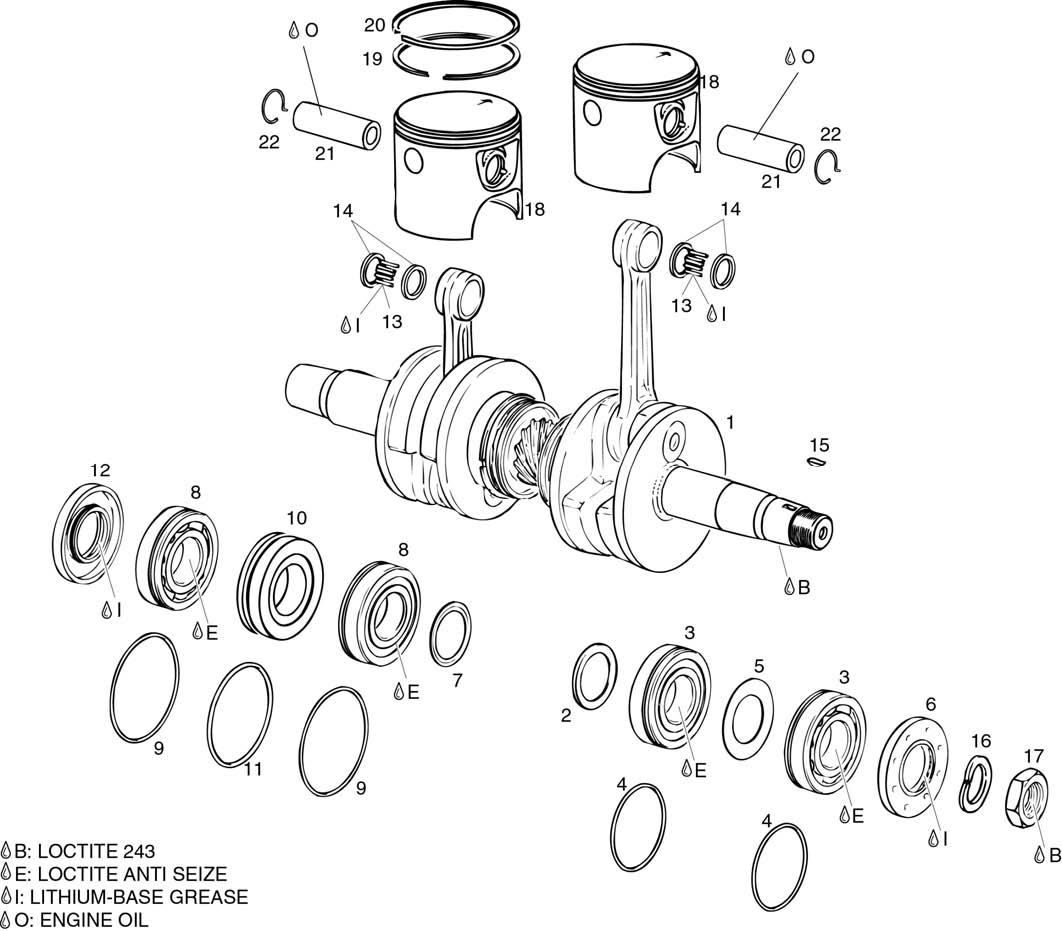

fig. 72-20-00-2
CRANKSHAFT, BEARINGS, PISTON For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-15 | 887052 | YES | Crankshaft Assy. 582 | USD 7011.13 | Add to Cart |
| 2 | 827441 | YES | Spacer Ring 30,5/42/2 | USD 85.32 | Add to Cart |
| 3 | 832212 | YES | B. Bearing 6206 N Tvh, 30-62-16 | USD 722.07 | Add to Cart |
| 4 | 830355 | YES | O-ring 49,2-1,8 | USD 1.39 | Add to Cart |
| 5 | 827715 | YES | Stop Shim 30,4/51/1 | USD 25.62 | Add to Cart |
| 6 | 830748 | YES | Oil Seal 30x62x7/7,5 | USD 24.09 | Add to Cart |
| 7 | 827760 | YES | Distance Ring 35,5/47/2 | USD 46.79 | Add to Cart |
| 8 | 632743 | YES | B. Bearing 6207n Tnh C3 35-72-17 | USD 688.6 | Add to Cart |
| 9 | 250165 | YES | O-ring 64-2 | USD 2.09 | Add to Cart |
| 10 | 830298 | YES | Labyrinth Sleeve | USD 409.73 | Add to Cart |
| 11 | 830370 | YES | O-ring 63-2,5 | USD 2.09 | Add to Cart |
| 12 | 831950 | YES | Oil Seal 35x72x7/8,5 | USD 31.24 | Add to Cart |
| 13-14 | 832320 | YES | Cagel. Needle Bearing 18x22x23 | USD 89.28 | Add to Cart |
| 14 | 827465 | YES | Thrust Washer 18/21,7/2,5 | USD 71.19 | Add to Cart |
| 15 | 246055 | YES | WOODRUFF KEY 3 X 3.7 | USD 6.26 | Add to Cart |
| 16 | 945759 | YES | Lock Washer 22 | USD 6.26 | Add to Cart |
| 17 | 842239 | YES | Hex. Nut M22x1,5 | USD 29.55 | Add to Cart |
| 18-20 | 888590-1 | NO | Piston, 75.94mm Red Dot | USD 0 | Add to Cart |
| 18-20 | 888590-2 | NO | Piston, 75.95mm Green Dot | USD 0 | Add to Cart |
| 18-20 | 888591-1 | NO | Piston, Ist Over 76.19mm Red Dot | USD 0 | Add to Cart |
| 18-20 | 888591-2 | NO | Piston, Ist Over 76.20mm Green Dot | USD 0 | Add to Cart |
| 18-20 | 888592-1 | NO | Piston, 2nd Over-76.44mm Red Dot | USD 0 | Add to Cart |
| 18-20 | 888592-2 | NO | Piston, 2nd Over 76.45mm Green Dot | USD 0 | Add to Cart |
| 19e | 215200 | YES | Rectangular Ring 76,00 Mm | USD 179.16 | Add to Cart |
| 19f | 215201 | YES | Rectangular Ring 76,25 Mm | USD 156.98 | Add to Cart |
| 19g | 215202 | YES | Rectangular Ring 76,5 Mm | USD 153.56 | Add to Cart |
| 20e | 915820 | YES | Semi-trapez Ring 76,0 Mm | USD 265.28 | Add to Cart |
| 20f | 915821 | YES | Semi-trapez Ring 76,25 Mm | USD 233.76 | Add to Cart |
| 20g | 915822 | YES | Semi-trapez Ring 76,5 Mm | USD 233.76 | Add to Cart |
| 21 | 916136 | YES | Piston Pin 18x11x53,7 | USD 54.32 | Add to Cart |
| 22 | 845540 | YES | Mono Hook Circlip | USD 12.49 | Add to Cart |
