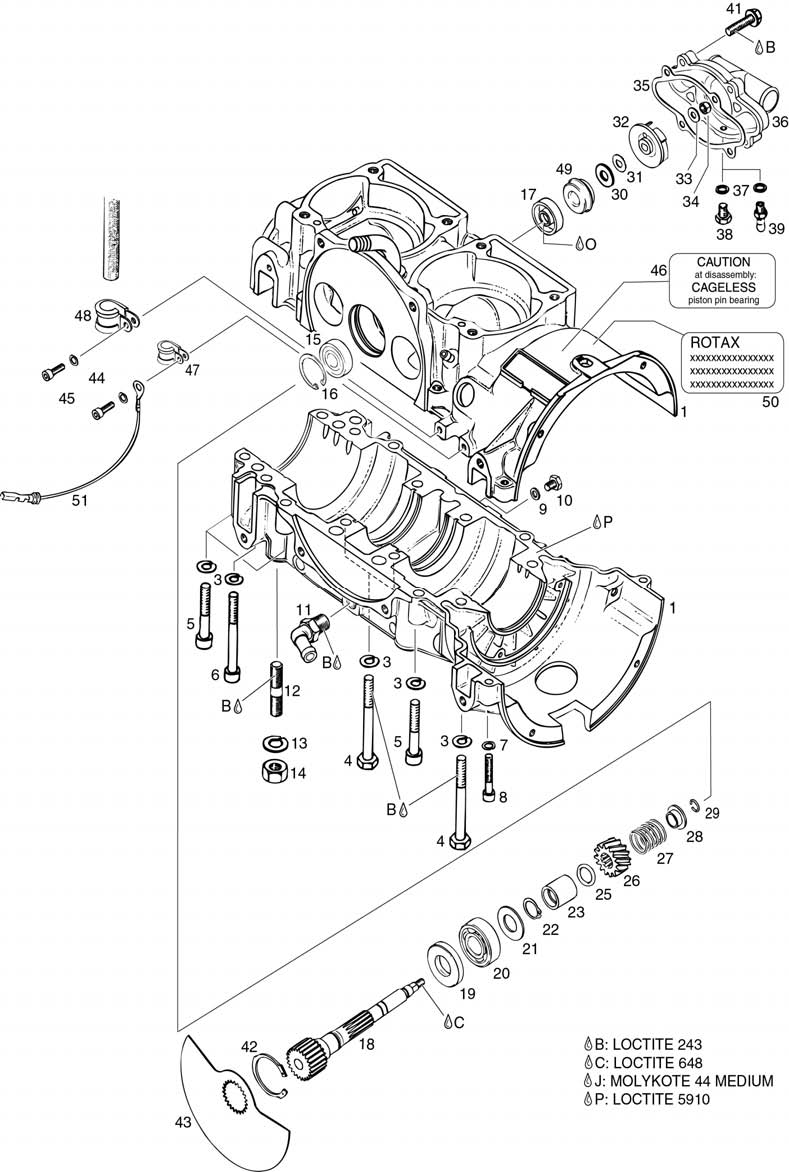

fig. 72-20-00-1
CRANKCASE, ROTARY VALVE DRIVE, WATER PUMP For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-12 | 888471 | YES | Crankcase-assy. | USD 2234.16 | Add to Cart |
| 1-29,42 | 888476 | YES | Crankcase-assy. With Rotary Valve Gear | USD 3395.95 | Add to Cart |
| 3 | 945832 | YES | LOCK WASHER A8 | USD 0.7 | Add to Cart |
| 4 | 841302 | YES | Hex. Screw M8x65 | USD 5.57 | Add to Cart |
| 5 | 841562 | YES | ALLEN SCREW M8X45 | USD 4.17 | Add to Cart |
| 6 | 841832 | YES | Allen Screw M8x75 | USD 6.26 | Add to Cart |
| 7 | 945831 | YES | LOCK WASHER A6 DIN 128 | USD 0.7 | Add to Cart |
| 8 | 241814 | YES | ALLEN SCREW M6x35 ISO 4762-8.8 | USD 2.75 | Add to Cart |
| 9 | 230415 | YES | GASKET RING A 6X10 | USD 1.97 | Add to Cart |
| 10 | 240772 | YES | HEX. SCREW M6X10 | USD 1.39 | Add to Cart |
| 11 | 922242 | YES | ANGULAR TUBE 1/4-18NPT | USD 99.59 | Add to Cart |
| 12 | 940190 | YES | Stud M10x29/20 | USD 24.96 | Add to Cart |
| 13 | 945833 | YES | LOCK WASHER A10 | USD 1.39 | Add to Cart |
| 14 | 242092 | YES | Hex.nut M10 | USD 1.39 | Add to Cart |
| 15 | 932797 | YES | B. Bearing 6201-z, 12-32-10 | USD 39.45 | Add to Cart |
| 16 | 245420 | YES | Retaining Ring 32x1,2 | USD 6.26 | Add to Cart |
| 17 | 850711 | YES | Oil Seal 10x30x8 | USD 16.64 | Add to Cart |
| 18 | 837250 | YES | Rotary Shaft 582/99 | USD 1053.63 | Add to Cart |
| 19 | 930580 | YES | Oil Seal 20x40x7 | USD 30.72 | Add to Cart |
| 20 | 932032 | YES | Ball Bear. 6203 Tvh C3,17-40-12 | USD 63.28 | Add to Cart |
| 21 | 227439 | YES | Shim 17,2/32,5/1,5 | USD 23.83 | Add to Cart |
| 22 | 845450 | YES | Retaining Ring 17x1 | USD 2.09 | Add to Cart |
| 23 | 847282 | YES | Spacer | USD 100.8 | Add to Cart |
| 25 | 831500 | YES | O-ring 14-3 | USD 0.7 | Add to Cart |
| 26 | 935736 | YES | Rotary Valve Gear 14 T. | USD 132.44 | Add to Cart |
| 27 | 938810 | YES | Compression Spring 25,1 Mm | USD 19.75 | Add to Cart |
| 28 | 827430 | YES | Spring Holding Cup | USD 30.77 | Add to Cart |
| 29 | 845160 | YES | Circlip 12 | USD 4.17 | Add to Cart |
| 30 | 227945 | YES | Thrust Washer 8,1/15/0,5 | USD 3.18 | Add to Cart |
| 31 | 227155 | YES | Friction Washer | USD 67.15 | Add to Cart |
| 32 | 922036 | YES | Impeller 582/618 | USD 16.64 | Add to Cart |
| 33 | 244211 | YES | Washer 6,4 Din 134 | USD 1.06 | Add to Cart |
| 34 | 842042 | YES | LOCK NUT M6 | USD 2.09 | Add to Cart |
| 35 | 831616 | YES | Impeller Gasket | USD 18.36 | Add to Cart |
| 36 | 922503 | YES | Water Pump Housing | USD 1394.01 | Add to Cart |
| 37 | 230415 | YES | GASKET RING A 6X10 | USD 1.97 | Add to Cart |
| 38 | 841581 | YES | Hex. Screw M6x8 | USD 0.7 | Add to Cart |
| 39 | 940551 | YES | HOSE NIPPLE M6 | USD 139.09 | Add to Cart |
| 41 | 240035 | YES | Hex Screw M6x25 | USD 12.49 | Add to Cart |
| 42 | 945880 | YES | RETAINING RING 40X1,75 | USD 10.38 | Add to Cart |
| 43 | 924504 | YES | Rotary Valve 132 Degr., | USD 91.24 | Add to Cart |
| 44 | 945830 | YES | LOCK WASHER A5 | USD 0.7 | Add to Cart |
| 45 | 840514 | YES | ALLEN SCREW M5X16 | USD 0.7 | Add to Cart |
| 46 | 897280 | YES | Nla | USD 0.67 | Add to Cart |
| 47 | 851111 | YES | CABLE CLAMP 8/M5 | USD 141.29 | Add to Cart |
| 48 | 851113 | YES | Clamp 18/m5 | USD 64.56 | Add to Cart |
| 49 | 650370 | YES | Rotary Seal | USD 95.68 | Add to Cart |
| 50 | 897501 | YES | Red Warning Label | USD 20.81 | Add to Cart |
