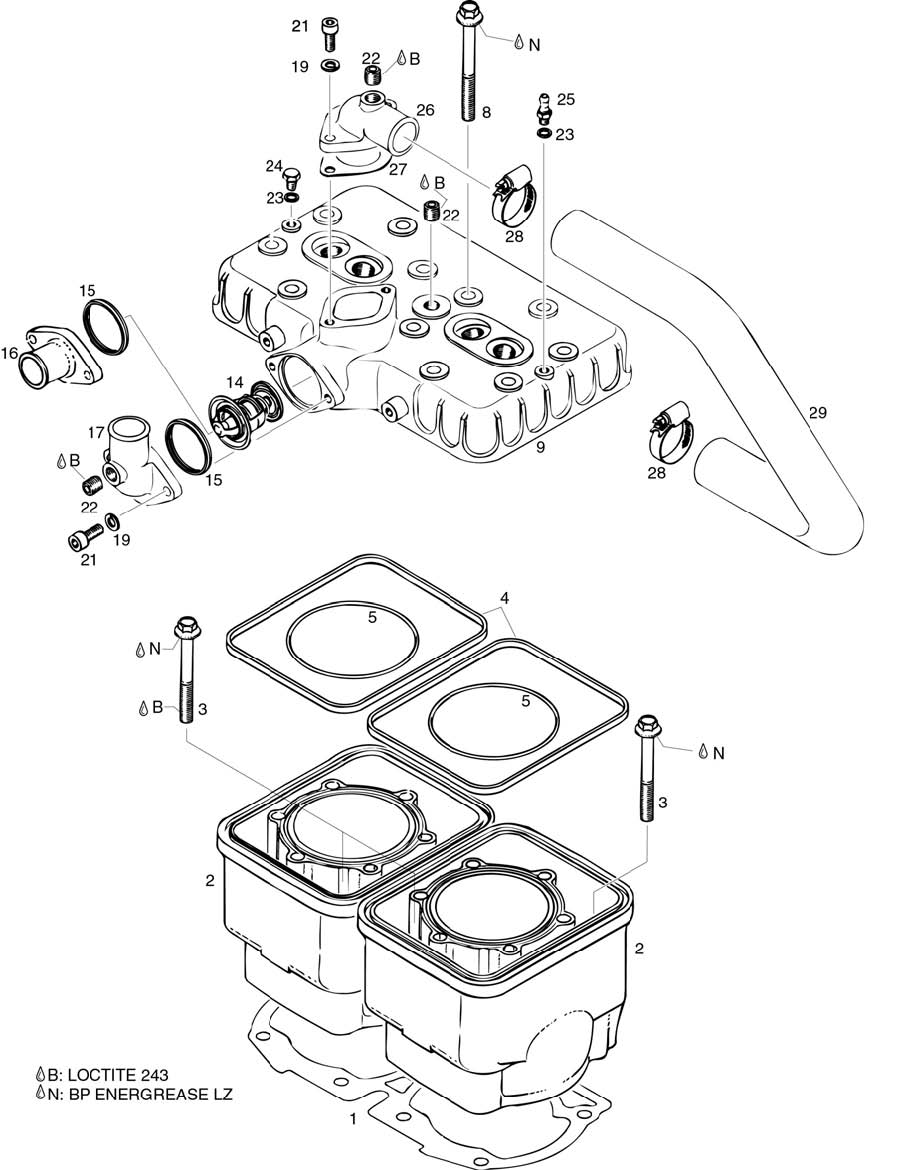

fig. 72-20-00-3
CYLINDER, CYLINDER HEAD For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 850775 | YES | Double Gasket 0,5 Mm | USD 75.06 | Add to Cart |
| 2 | 913448 | YES | 913 448 Use 913 448-1 Or 913 448-2 | USD 2989.12 | Add to Cart |
| 3 | 640958 | YES | Collar Hex.screw M8x68,5 Sw 11 | USD 14.58 | Add to Cart |
| 4 | 850040 | YES | Rubber Ring 152,5x2,5x5 | USD 29.73 | Add to Cart |
| 5 | 850540 | YES | O-ring 83-2 | USD 15.94 | Add to Cart |
| 8 | 841305 | NO | Collar Hex Screw M8x65 Sw | USD 0 | Add to Cart |
| 9- | 913848 | YES | Cylinder Head | USD 2115.39 | Add to Cart |
| 9- | 913848 | YES | Cylinder Head | USD 2115.39 | Add to Cart |
| 14-15 | 922511 | YES | Thermostat With Gasket | USD 218.8 | Add to Cart |
| 15 | 931270 | YES | Thermostat Gasket | USD 9.71 | Add to Cart |
| 16 | 922025 | YES | Water Outlet Socket | USD 53.28 | Add to Cart |
| 17 | 922061 | YES | Bent Outlet Socket | USD 133.93 | Add to Cart |
| 19 | 945831 | YES | LOCK WASHER A6 DIN 128 | USD 0.7 | Add to Cart |
| 20 | 242214 | YES | HEX. NUT M6 | USD 0.7 | Add to Cart |
| 21 | 241939 | YES | Allen Screw M6x20 | USD 5.2 | Add to Cart |
| 22 | 240483 | YES | Plug Screw 1/8-27npt | USD 63.05 | Add to Cart |
| 23 | 230415 | YES | GASKET RING A 6X10 | USD 1.97 | Add to Cart |
| 24 | 841581 | YES | Hex. Screw M6x8 | USD 0.7 | Add to Cart |
| 25 | 940551 | YES | HOSE NIPPLE M6 | USD 139.09 | Add to Cart |
| 26 | NO | USD 0 | Add to Cart | ||
| 27 | 850339 | YES | Gasket | USD 28.89 | Add to Cart |
| 28 | 951880 | YES | Clamp 20-32 | USD 20.84 | Add to Cart |
| 29 | 922521 | YES | Molded Hose_25/180 Degree | USD 127.53 | Add to Cart |
