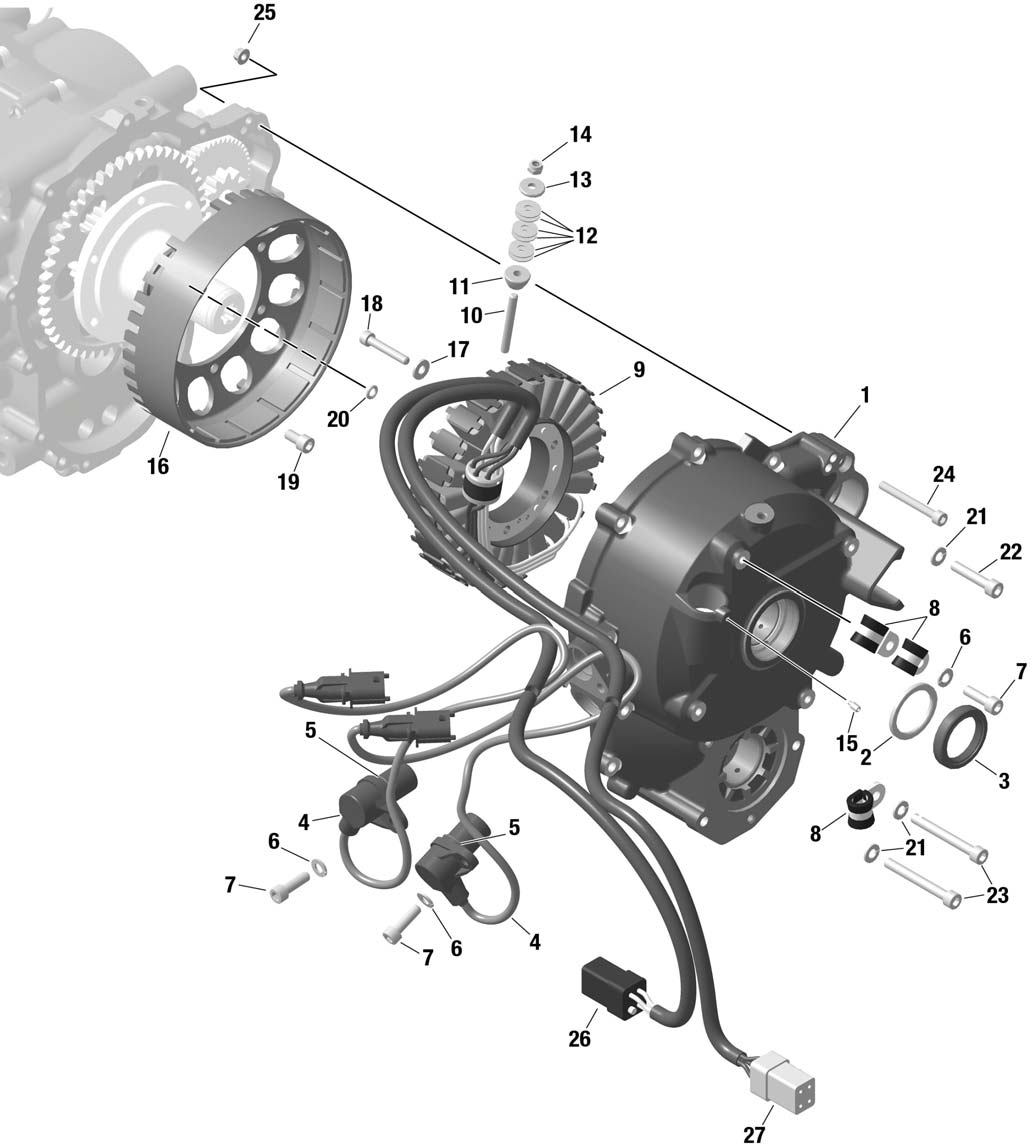

fig. 24-20-00-1
IGNITION HOUSING, STATOR, RECTIFIER REGULATOR, CRANKSHAFT POSITION SENSOR ASSY. For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 912416 | YES | IGNITION HOUSING ASSY. | USD 3371.91 | Add to Cart |
| 2 | 827220 | YES | WASHER 32/38/1,5 | USD 86.83 | Add to Cart |
| 3 | 230429 | YES | OIL SEAL GPRE 28x38 x7 FKM | USD 136.05 | Add to Cart |
| 4-5 | 966572 | YES | CRANKSHAFT POSITION SENSOR | USD 832.93 | Add to Cart |
| 5 | 431580 | YES | O-RING 17,17X1,78 FPM 70 | USD 27.16 | Add to Cart |
| 6 | 945831 | YES | LOCK WASHER A6 DIN 128 | USD 0.7 | Add to Cart |
| 7 | 241935 | YES | ALLEN SCREW M6x20 DIN 912 | USD 2.09 | Add to Cart |
| 8 | 853412 | YES | Cable Clamp #8 | USD 16.64 | Add to Cart |
| 9 | 685062 | YES | STATOR ASSY. | USD 1910.54 | Add to Cart |
| 11 | 947510 | YES | Distance Sleeve | USD 88.27 | Add to Cart |
| 12 | 938080 | YES | Disk Spring 15x5,2x0,7 | USD 5.93 | Add to Cart |
| 13 | 827240 | YES | Washer 5,1/15,5/2,5 | USD 68.59 | Add to Cart |
| 14 | 842033 | YES | Lock Nut M5 | USD 1.18 | Add to Cart |
| 16 | 685070 | YES | MAGNETO FLYWHEEL ASSY. | USD 1730.4 | Add to Cart |
| 17 | 827801 | YES | WASHER ISO 10673-N-6-200 HV | USD 0.7 | Add to Cart |
| 18 | 940882 | YES | ALLEN SCREW ISO 4762 - M5x30 - 8.8 | USD 2.09 | Add to Cart |
| 19 | 840036 | YES | Allen Screw M6x12 Din 912 | USD 5.93 | Add to Cart |
| 20 | 831929 | YES | O-RING 5X2 | USD 3.45 | Add to Cart |
| 21 | 827962 | YES | WASHER 6.4 DIN 125 | USD 0.7 | Add to Cart |
| 22 | 840888 | YES | ALLEN SCREW ISO 4762 M6X30 8.8 | USD 2.09 | Add to Cart |
| 23 | 241762 | YES | ALLEN SCREW M6X50 DIN 912 | USD 3.45 | Add to Cart |
| 24 | 941792 | YES | ALLEN SCREW M5X45 | USD 3.69 | Add to Cart |
| 25 | 942311 | YES | HEX. NUT M5 | USD 132.44 | Add to Cart |
