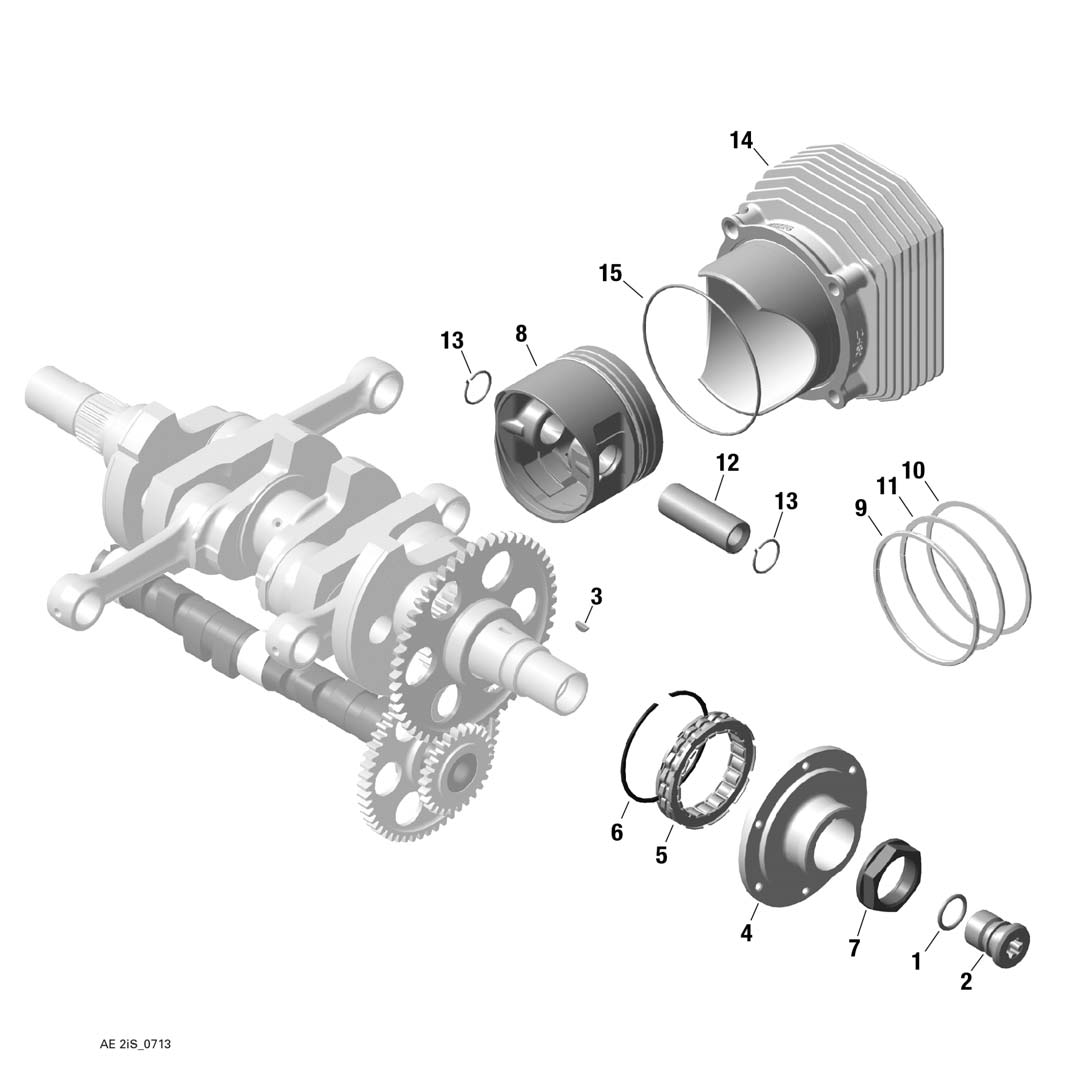

fig. 72-20-00-2
CRANKSHAFT, PISTON, CYLINDER, SPRAG CLUTCH For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 250057 | YES | O-RING DIN 3771-18X2,5-N, FPM 75 | USD 1.57 | Add to Cart |
| 2 | 940520 | YES | Plug Screw M22x1,5 | USD 192.79 | Add to Cart |
| 3 | 246055 | YES | WOODRUFF KEY 3 X 3.7 | USD 6.26 | Add to Cart |
| 4 | 852407 | YES | Sprag Clutch Housing | USD 445.07 | Add to Cart |
| 5 | 958856 | YES | SPRAG CLUTCH 51.710x68.377x13 | USD 458.56 | Add to Cart |
| 6 | 845425 | YES | CIRCLIP 70 | USD 21.87 | Add to Cart |
| 7 | 942250 | YES | HEX. NUT M32X1,5-LH | USD 211.18 | Add to Cart |
| 8-10 | 888382 | YES | PISTON ASSY. 84.00/84.01 | USD 1069.55 | Add to Cart |
| 9 | 815230 | YES | OIL SCRAPER RING 84/76.5x3 | USD 114.29 | Add to Cart |
| 10 | 815280 | YES | TAPERED COMPRESSION RING 84/77x1.25 | USD 78.01 | Add to Cart |
| 11 | 815257 | YES | RECTANGULAR RING 84/77X1,5 | USD 149.14 | Add to Cart |
| 12 | 916356 | YES | PISTON PIN 20x12x55.3 | USD 258.29 | Add to Cart |
| 13 | 845106 | YES | MONO-HOOK CIRCLIPS | USD 11.43 | Add to Cart |
| 14 | 913229 | YES | CYLINDER | USD 1546.24 | Add to Cart |
| 15 | 250510 | YES | O-RING 87-2 | USD 20.36 | Add to Cart |
