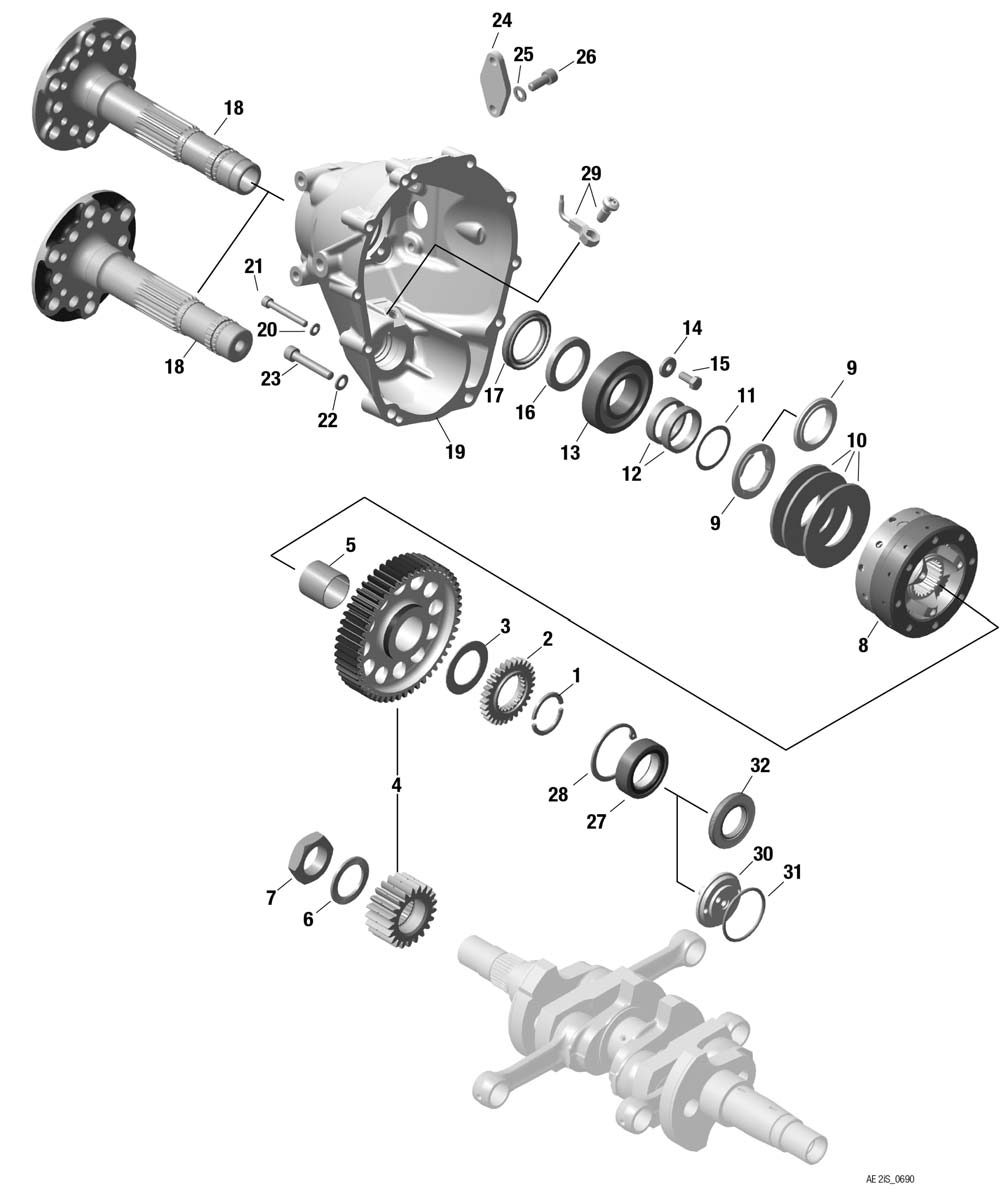

fig. 72-10-00-1
PROPELLER GEAR ASSY. WITH OVERLOAD CLUTCH For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-28 | 893341 | YES | GEARBOX WITH CLUTCH I 2,43-2 600NM | USD 11992.54 | Add to Cart |
| 1-28 | 893345 | YES | GEARBOX WITH CLUTCH I 2,43-3 | USD 10227.47 | Add to Cart |
| 1 | 926035 | YES | RING HALF | USD 128.52 | Add to Cart |
| 2 | 834233 | YES | DRIVE GEAR 29T. | USD 178.57 | Add to Cart |
| 3 | 827992 | YES | THRUST WASHER, PLASTIC 33.2/51/1.2 | USD 223.04 | Add to Cart |
| 4 | 886548 | YES | GEAR SET I 2.43 | USD 2935.39 | Add to Cart |
| 5 | 933362 | YES | BEARING BUSHING 31x33x29.8 | USD 340.94 | Add to Cart |
| 6 | 845431 | YES | FRICTION WASHER VS30 | USD 27.7 | Add to Cart |
| 7 | 842579 | YES | HEX NUT M30 x 1.5 12MM LH | USD 195.01 | Add to Cart |
| 8 | 996916 | YES | OVERLOAD CLUTCH ASSY. 600NM | USD 4050.66 | Add to Cart |
| 9 | 847787 | YES | STEP COLLAR | USD 229.54 | Add to Cart |
| 10 | 838216 | YES | SPRING WASHER 80x41x3 | USD 72.22 | Add to Cart |
| 11 | 927401 | YES | SHIM 35.4/43/0.2 | USD 8.35 | Add to Cart |
| 11 | 927402 | YES | SHIM 35.4/43/0.5 | USD 10.38 | Add to Cart |
| 11 | 927403 | YES | SHIM 35.4/43/1.0 | USD 13.55 | Add to Cart |
| 12 | 847687 | YES | SPACER 35.0/42/8 | USD 117.01 | Add to Cart |
| 13 | 832587 | YES | BALL BEARING 6207 ETN9 C3 35-72-17 | USD 775.65 | Add to Cart |
| 14 | 944320 | YES | WASHER | USD 11.43 | Add to Cart |
| 15 | 941760 | YES | HEX HEAD SCREW M7x16 | USD 5.2 | Add to Cart |
| 16 | 926022 | YES | DISTANCE RING | USD 82.72 | Add to Cart |
| 17 | 950470 | YES | OIL SEAL 40x55x7 | USD 224.91 | Add to Cart |
| 18 | 937036 | YES | PROPELLER SHAFT VERSION 2 | USD 2529.75 | Add to Cart |
| 19 | 610362 | YES | GEAR COVER ASSY.PACKED | USD 3059.18 | Add to Cart |
| 20 | 827962 | YES | WASHER 6.4 DIN 125 | USD 0.7 | Add to Cart |
| 21 | 241823 | YES | ALLEN SCREW M6X45 DIN 912 | USD 4.17 | Add to Cart |
| 22 | 944131 | YES | WASHER 8 | USD 4.17 | Add to Cart |
| 23 | 841562 | YES | ALLEN SCREW M8X45 | USD 4.17 | Add to Cart |
| 24 | 926151 | YES | COVER | USD 78.01 | Add to Cart |
| 25 | 945832 | YES | LOCK WASHER A8 | USD 0.7 | Add to Cart |
| 26 | 940592 | YES | HEX SCREW M8X20 | USD 3.45 | Add to Cart |
| 27 | 232246 | YES | ROLLER BEARING | USD 224.99 | Add to Cart |
| 28 | 945820 | YES | RETAINING RING 52 x 2 DIN 472 | USD 10.38 | Add to Cart |
| 29 | 950200 | YES | OIL SEAL 30x52x7 | USD 232.34 | Add to Cart |
| 30 | 810301 | YES | OIL INLET FLANGE | USD 828.95 | Add to Cart |
| 31 | 430175 | YES | O-RING 46X3 | USD 15.25 | Add to Cart |
