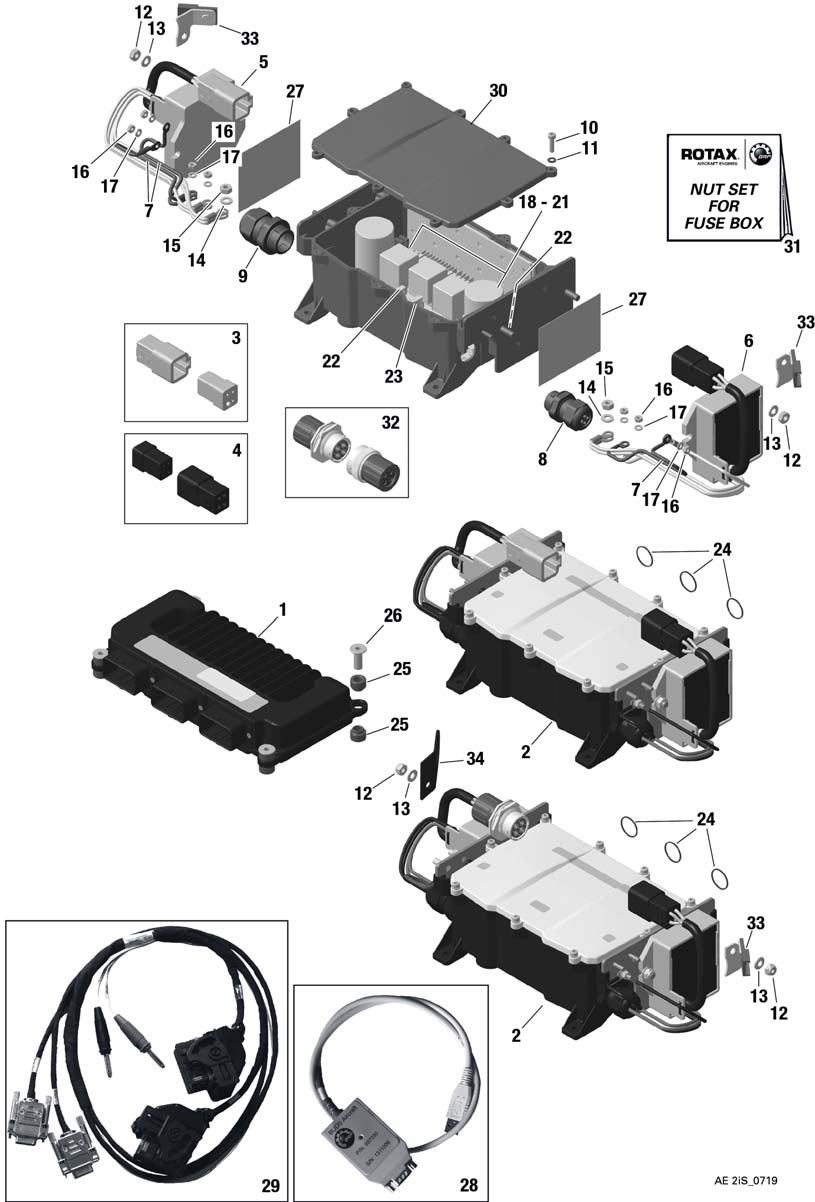

fig. 76-10-00-1
ENGINE CONTROL UNIT, FUSE BOX REGULATOR For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | NO | USD 0 | Add to Cart | ||
| 2 | 881325 | YES | FUSE BOX PACKAGED | USD 9315.55 | Add to Cart |
| 3 | 866422 | YES | Connector Set Grey | USD 252.19 | Add to Cart |
| 4 | 866420 | YES | Connector Set Black | USD 288.19 | Add to Cart |
| 5 | 864395 | YES | Regulator B - Connector Grey | USD 1470.86 | Add to Cart |
| 6 | 864392 | YES | REGULATOR A-CONNECTOR BLACK | USD 1200.11 | Add to Cart |
| 7 | 866440 | YES | Mass Cable Assy. | USD 30.2 | Add to Cart |
| 8 | 201370 | YES | Skintop Click 20 | USD 35.06 | Add to Cart |
| 9 | 201375 | YES | Skintop Click 25 | USD 35.06 | Add to Cart |
| 10 | 840763 | YES | ALLEN SCREW M4X16 ISO 4762-A2-70 | USD 19.75 | Add to Cart |
| 11 | 827230 | YES | PLASTIC WASHER M4 | USD 282.53 | Add to Cart |
| 12 | 842042 | YES | LOCK NUT M6 | USD 2.09 | Add to Cart |
| 13 | 244213 | YES | WASHER 6,4 | USD 1.06 | Add to Cart |
| 14 | 927573 | YES | Washer 5,3 Din 125 | USD 1.18 | Add to Cart |
| 15 | 842033 | YES | Lock Nut M5 | USD 1.18 | Add to Cart |
| 16 | 242538 | YES | Lock Nut Din 985-m4-a2 | USD 1.06 | Add to Cart |
| 17 | 244078 | YES | Washer 4,3 Din 134 | USD 24.47 | Add to Cart |
| 18- | 866450 | YES | Mini-fuse 2a | USD 11.4 | Add to Cart |
| 19- | 866452 | YES | Mini-fuse 5a | USD 11.4 | Add to Cart |
| 20- | 866454 | YES | Mini-fuse 7,5a | USD 11.4 | Add to Cart |
| 21- | 866456 | YES | Mini-fuse 10a | USD 18.36 | Add to Cart |
| 22- | 866490 | YES | ATO-FUSE 20A | USD 17.73 | Add to Cart |
| 23- | 866492 | YES | ATO-FUSE 35A | USD 17.73 | Add to Cart |
| 24 | 931110 | YES | SEALING RING | USD 47.17 | Add to Cart |
| 25 | 201460 | YES | Rubber Sleeve | USD 0 | Add to Cart |
| 26 | 947540 | YES | Spacer | USD 0 | Add to Cart |
| 27 | 282870 | YES | Heat Plate | USD 89.97 | Add to Cart |
| 28 | 864021 | YES | Ecu Reader Level 1 | USD 3594.58 | Add to Cart |
| 29 | 864280 | YES | Service Wiring Harness Assy. | USD 534.44 | Add to Cart |
| 30 | 201690 | YES | Cover, Fuse Box | USD 705.96 | Add to Cart |
| 31 | 881555 | YES | NUT SET FUSE BOX | USD 480.42 | Add to Cart |
| 32 | 481510 | YES | CONNECTOR SET STATOR LANE B | USD 1293.9 | Add to Cart |
| 33 | 951983 | YES | Connector Bracket | USD 120.38 | Add to Cart |
| 34 | 951981 | YES | CONNECTOR BRACKET | USD 171.49 | Add to Cart |
