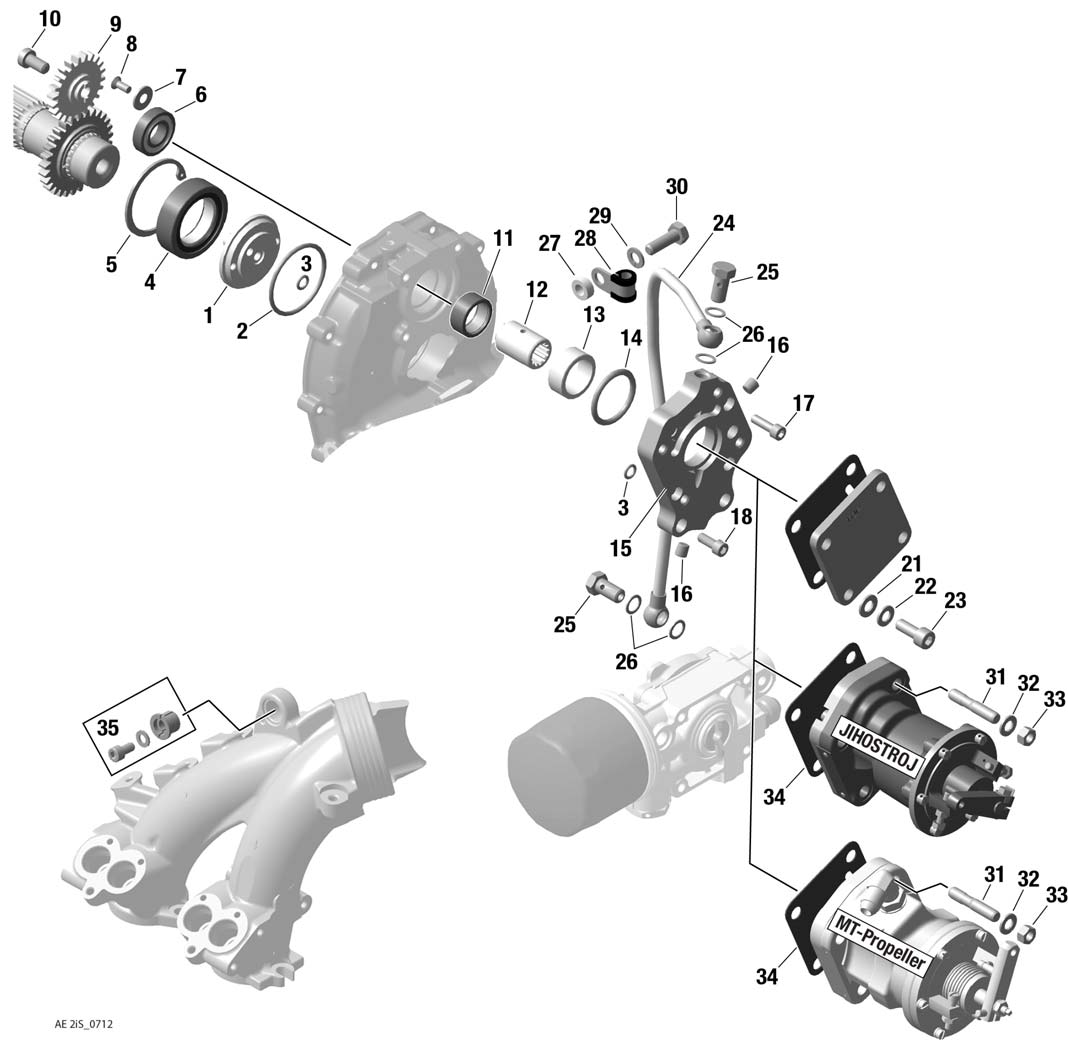

fig. 61-20-00-1
HYDR. GOVERNOR ARRANGEMENT FOR CONSTANT SPEED PROPELLER For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 3 | 830415 | YES | O-RING 7X2 | USD 4.17 | Add to Cart |
| 6 | 832363 | YES | BALL BEARING 16002 C3 | USD 665.27 | Add to Cart |
| 9 | 834245 | YES | VACUUM PUMP GEAR | USD 639.77 | Add to Cart |
| 10 | 941522 | YES | ALLEN SCREW M8x16 | USD 3.45 | Add to Cart |
| 11 | 232925 | YES | NEEDLE SLEEVE 22X28X12 | USD 67.2 | Add to Cart |
| 13 | 847802 | YES | SPACER 25/31,95/13 | USD 317.84 | Add to Cart |
| 14 | 950380 | YES | O-RING 32X4 | USD 16.49 | Add to Cart |
| 15 | 810294 | YES | GOVERNOR FLANGE | USD 1214.87 | Add to Cart |
| 16 | 941611 | YES | SCREW PLUG M8X1 | USD 22.87 | Add to Cart |
| 17 | 241935 | YES | ALLEN SCREW M6x20 DIN 912 | USD 2.09 | Add to Cart |
| 18 | 241237 | YES | ALLEN SCREW M6X16 DIN 912 | USD 0.7 | Add to Cart |
| 19 | 931770 | YES | GASKET | USD 24.96 | Add to Cart |
| 20 | 926231 | YES | COVER | USD 476.26 | Add to Cart |
| 21 | 250315 | YES | WASHER 8,4 DIN 125 | USD 0.7 | Add to Cart |
| 22 | 945832 | YES | LOCK WASHER A8 | USD 0.7 | Add to Cart |
| 23 | 240072 | YES | ALLEN SCREW M8X29 | USD 1.39 | Add to Cart |
| 24 | 956460 | YES | PRESSURE OIL LINE ASSY | USD 760.91 | Add to Cart |
| 26 | 230150 | YES | GASKET RING A 10X14 | USD 1.94 | Add to Cart |
| 28 | 853418 | YES | CABLE CLAMP 8/M8 | USD 98.63 | Add to Cart |
| 30 | 240277 | YES | HEX. SCREW ISO 4017 - M8X25 - 8.8 | USD 2.09 | Add to Cart |
| 31 | 840711 | YES | STUD M8X21/20 | USD 153.06 | Add to Cart |
