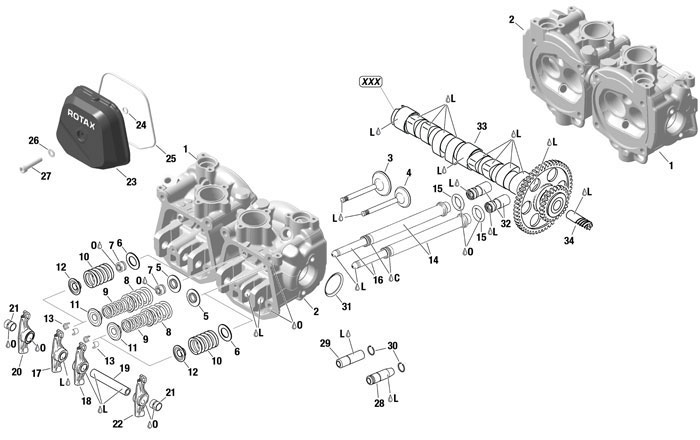

fig. 72-20-00-5
CYLINDERHEAD, VALVE TRAIN, VALVE COVER For ROTAX 912UL
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1- | 413237 | YES | CYLINDER HEAD 2/3 ASSY. | USD 2604.01 | Add to Cart |
| 2- | 413248 | YES | CYLINDER HEAD 1/4 ASSY. | USD 2552.07 | Add to Cart |
| 1- | 413186 | YES | CYLINDERHEAD 2/3 ASSY. | USD 2386.68 | Add to Cart |
| 2- | 413196 | YES | CYLINDERHEAD 1/4 ASSY. | USD 2370.78 | Add to Cart |
| 3 | 854102 | YES | INTAKE VALVE 38 MM | USD 288.28 | Add to Cart |
| 4 | 854585 | YES | EXHAUST VALVE 32MM | USD 552.93 | Add to Cart |
| 5 | 242032 | YES | HEX NUT BM6 | USD 0.7 | Add to Cart |
| 6 | 926210 | YES | SHIM, VALVE SPRING SUPPORT | USD 8.35 | Add to Cart |
| 7 | 230810 | YES | VALVE STEM SEAL | USD 14.58 | Add to Cart |
| 10 | 838156 | YES | VALVE SPRING | USD 75.29 | Add to Cart |
| 12 | 854188 | NO | Valve Spring Retainer | USD 0 | Add to Cart |
| 13 | 253092 | YES | VALVE COTTER | USD 11.77 | Add to Cart |
| 14 | 924440 | YES | RETURN TUBE | USD 34.83 | Add to Cart |
| 15 | 850930 | YES | O-RING 16x5 | USD 11.07 | Add to Cart |
| 16 | 854862 | YES | PUSH ROD ASSY. | USD 194.54 | Add to Cart |
| 19- | 854193 | YES | ROCKER ARM SHAFT | USD 133.93 | Add to Cart |
| 19- | 854197 | YES | ROCKER ARM SHAFT 0.2MM OVERSIZE | USD 247.05 | Add to Cart |
| 20 | 854387 | YES | ROCKER ARM LEFT | USD 820.74 | Add to Cart |
| 21 | 933396 | YES | BUSHING | USD 219.27 | Add to Cart |
| 22 | 854397 | YES | ROCKER ARM RIGHT | USD 820.74 | Add to Cart |
| 23- | 612263 | YES | VALVE COVER | USD 245.16 | Add to Cart |
| 23- | 612262 | YES | VALVE COVER | USD 243.96 | Add to Cart |
| 23- | 612260 | YES | VALVE COVER | USD 243.96 | Add to Cart |
| 24 | 430205 | YES | O-RING 6.4-1.8 | USD 1.39 | Add to Cart |
| 25 | 250285 | YES | O-RING VALVE COVER 105-2.5-N DIN 3771 | USD 30.22 | Add to Cart |
| 26 | 927941 | YES | WASHER 6.0/12/1 | USD 3.18 | Add to Cart |
| 27 | 840887 | YES | ALLEN SCREW M6 x 30 | USD 5.2 | Add to Cart |
| 28 | 253114 | YES | INLET VALVE GUIDE | USD 48.68 | Add to Cart |
| 29 | 854224 | YES | OUTLET VALVE GUIDE | USD 50.28 | Add to Cart |
| 30 | 245440 | YES | CIRCLIP 12 | USD 2.09 | Add to Cart |
| 31 | 931920 | YES | GASKET RING | USD 266.37 | Add to Cart |
| 32 | 881832 | YES | HYDRAULIC VALVE TAPPET SET | USD 2407.8 | Add to Cart |
| NO | USD 0 | Add to Cart |
