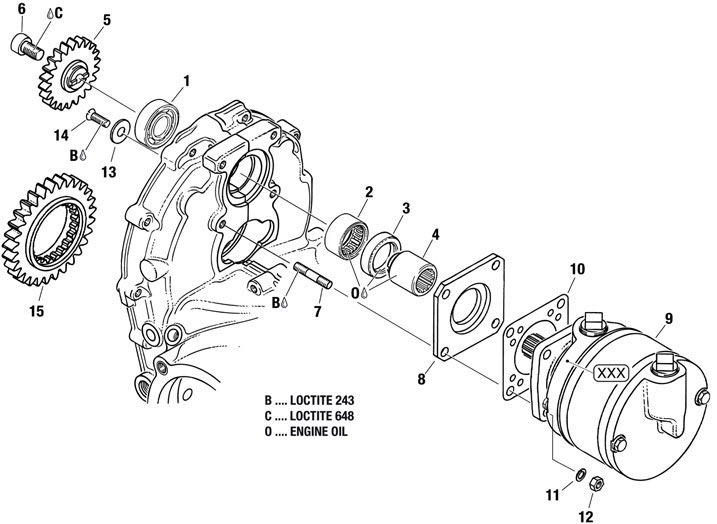

fig. 37-10-00
VACUUM PUMP WITH DRIVE For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-8 | 881690 | YES | VACUUM PUMP DRIVE RETROFIT | USD 2035.72 | Add to Cart |
| 1 | 832363 | YES | BALL BEARING 16002 C3 | USD 665.27 | Add to Cart |
| 2 | 232925 | YES | NEEDLE SLEEVE 22X28X12 | USD 67.2 | Add to Cart |
| 3 | 831265 | YES | OIL SEAL AS 22X32X7 | USD 58.4 | Add to Cart |
| 4 | 847771 | YES | SLEEVE | USD 1136.95 | Add to Cart |
| 5 | 834245 | YES | VACUUM PUMP GEAR | USD 639.77 | Add to Cart |
| 6 | 941527 | YES | ALLEN SCREW M8 x 14 | USD 8.35 | Add to Cart |
| 7 | 941080 | YES | STUD M6X20/10 | USD 13.88 | Add to Cart |
| 8 | 810170 | YES | ATTACHMENT FLANGE | USD 1241.91 | Add to Cart |
| 11 | 827962 | YES | WASHER 6.4 DIN 125 | USD 0.7 | Add to Cart |
| 12 | 242214 | YES | HEX. NUT M6 | USD 0.7 | Add to Cart |
| 13 | 227280 | YES | THRUST WASHER | USD 12.49 | Add to Cart |
| 14 | 940316 | YES | COUNTERSUNK SCREW M5X12-5.8 | USD 2.09 | Add to Cart |
| 15 | 834233 | YES | DRIVE GEAR 29T. | USD 178.57 | Add to Cart |
