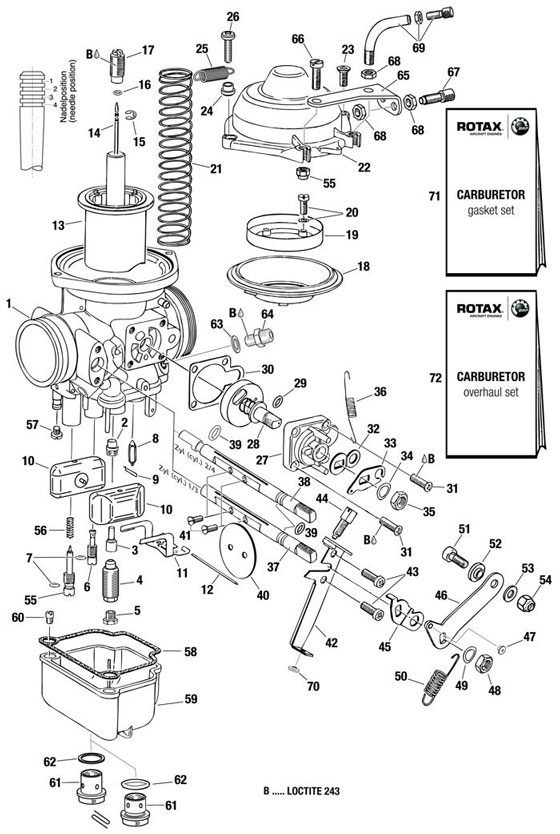

fig. 73-00-00-3
CARBURETOR - SINGLE PARTS 914 SERIES For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1- | 892520 | YES | CONSTANT DEPRESSION CARBURETOR 1/3 | USD 2112.88 | Add to Cart |
| 1- | 892527 | NO | CONSTANT DEPRESSION CARB. ASSY 2/4 | USD 0 | Add to Cart |
| 2 | 961200 | YES | DIFFUSER | USD 86.19 | Add to Cart |
| 3 | 261607 | YES | NEEDLE JET 2.72 | USD 114.51 | Add to Cart |
| 4 | 963135 | YES | MIXING TUBE | USD 110.85 | Add to Cart |
| 5- | 268997 | YES | MAIN JET 156 | USD 63 | Add to Cart |
| 5- | 268996 | YES | MAIN JET 158 | USD 63 | Add to Cart |
| 5- | 268985 | YES | MAIN JET 160 | USD 63 | Add to Cart |
| 5- | 268993 | YES | MAIN JET 164 | USD 63 | Add to Cart |
| 6 | 963143 | YES | IDLER JET 35 | USD 182.53 | Add to Cart |
| 7 | 831713 | YES | O-RING 3.2 x 1.8 | USD 17.06 | Add to Cart |
| 8 | 261708 | YES | FLOAT NEEDLE VALVE W. VITON TIP | USD 157.38 | Add to Cart |
| 9 | 261710 | YES | FLOAT NEEDLE CLIP | USD 12.67 | Add to Cart |
| 10 | 861189 | YES | FLOATS (PAIR) | USD 174.49 | Add to Cart |
| 11 | 861192 | YES | FLOAT BRACKET | USD 45.11 | Add to Cart |
| 12 | 929702 | YES | PIN | USD 24.62 | Add to Cart |
| 13 | 961231 | YES | CARBURETOR PISTON | USD 967.99 | Add to Cart |
| 14 | 961215 | YES | JET NEEDLE | USD 93.77 | Add to Cart |
| 15 | 945786 | YES | CIRCLIP | USD 9.74 | Add to Cart |
| 16 | 950430 | YES | O-RING DIN 3771 2.5x1.5-N | USD 11.04 | Add to Cart |
| 17 | 961293 | YES | FIXATION SCREW | USD 92.33 | Add to Cart |
| 18 | 861116 | YES | DIAPHRAGM | USD 155 | Add to Cart |
| 19 | 961241 | YES | Retaining Ring | USD 0 | Add to Cart |
| 20 | 841210 | YES | COMBINED SCREW M4X12 | USD 15.06 | Add to Cart |
| 21 | 938365 | YES | THROTTLE VALVE SPRING | USD 63 | Add to Cart |
| 22 | 961250 | YES | CHAMBER TOP | USD 633.54 | Add to Cart |
| 23 | 841341 | YES | COUNTERSUNK SCREW M5x12 | USD 15.64 | Add to Cart |
| 24 | 847910 | YES | DISTANCE SLEEVE | USD 63.99 | Add to Cart |
| 25 | 838242 | YES | SPRING | USD 66.25 | Add to Cart |
| 26 | 640251 | YES | OVAL HEAD SCREW M5x20 | USD 20.84 | Add to Cart |
| 27 | 961281 | YES | CHOKE HOUSING | USD 144.21 | Add to Cart |
| 28- | 961273 | YES | CHOKE VALVE ASSY 1/3 | USD 379.26 | Add to Cart |
| 28- | 961278 | YES | CHOKE VALVE ASSY 2/4 | USD 379.26 | Add to Cart |
| 29 | 950420 | YES | O-RING 5x1.5 VITON | USD 41.88 | Add to Cart |
| 30 | 950030 | YES | GASKET | USD 35.63 | Add to Cart |
| 31 | 841360 | YES | SCREW M4X14 | USD 24.65 | Add to Cart |
| 32 | 848241 | YES | CHOKE LEVER INSIDE | USD 25.92 | Add to Cart |
| 33 | 848245 | YES | CHOKE LEVER OUTSIDE | USD 46.65 | Add to Cart |
| 34 | 845035 | YES | SPRING WASHER | USD 28.56 | Add to Cart |
| 35 | 942290 | YES | HEX.NUT M8X1 | USD 24.65 | Add to Cart |
| 36 | 938286 | YES | RETURN SPRING, CHOKE | USD 44.17 | Add to Cart |
| 37 | 963992 | YES | THROTTLE SHAFT | USD 94.24 | Add to Cart |
| 38 | 963994 | YES | THROTTLE SHAFT | USD 315.83 | Add to Cart |
| 39 | 950020 | YES | O-RING 6-1.9 | USD 44.08 | Add to Cart |
| 40 | 963666 | YES | THROTTLE VALVE | USD 61.54 | Add to Cart |
| 41 | 941200 | YES | SLOTTED HEAD SCREW M3X6 | USD 24.65 | Add to Cart |
| 42- | 961262 | YES | CABLE SUPPORT ASSY 1/3 | USD 228.89 | Add to Cart |
| 42- | 961267 | YES | CABLE SUPPORT ASSY 2/4 | USD 233.63 | Add to Cart |
| 43 | 240357 | YES | OVAL HEAD SCREW M4x10 DIN 7985 | USD 17.03 | Add to Cart |
| 44 | 963162 | YES | THROTTLE VALVE STOP SCREW | USD 23.88 | Add to Cart |
| 45- | 848232 | YES | STOP LEVER 2/4 | USD 24.28 | Add to Cart |
| 45- | 848230 | YES | STOP LEVER 1/3 | USD 29.19 | Add to Cart |
| 46-47 | 963026 | YES | THROTTLE VALVE LEVER ASSY 1/3 | USD 205.39 | Add to Cart |
| 46-47 | 963021 | YES | THROTTLE VALVE LEVER 2/4 | USD 205.39 | Add to Cart |
| 47 | 963015 | YES | SLEEVE FOR THROTTLE VALVE LEVER | USD 24.62 | Add to Cart |
| 48 | 942290 | YES | HEX.NUT M8X1 | USD 24.65 | Add to Cart |
| 49 | 845035 | YES | SPRING WASHER | USD 28.56 | Add to Cart |
| 50 | 938288 | YES | CARB SPRING, THROTTLE | USD 84.38 | Add to Cart |
| 51 | 241847 | YES | ALLEN SCREW M5 X 12 | USD 42.4 | Add to Cart |
| 52 | 847741 | YES | GRADUATED SLEEVE | USD 62.5 | Add to Cart |
| 53 | 827801 | YES | WASHER ISO 10673-N-6-200 HV | USD 0.7 | Add to Cart |
| 54 | 842032 | YES | LOCK NUT M5-6.6 | USD 0.7 | Add to Cart |
| 55 | 961222 | YES | IDLE-MIXTURE SCREW | USD 110.19 | Add to Cart |
| 56 | 239463 | YES | COMPRESSION SPRING | USD 44.17 | Add to Cart |
| 57 | 941740 | YES | SLOTTED HEAD SCREW M3,5X5 | USD 22.32 | Add to Cart |
| 58 | 830721 | YES | GASKET | USD 105.71 | Add to Cart |
| 59-60 | 963238 | YES | FLOAT CHAMBER ASSY 2/4 | USD 379.26 | Add to Cart |
| 59-60 | 963236 | YES | FLOAT CHAMBER ASSY 1/3 | USD 379.26 | Add to Cart |
| 60- | 268758 | YES | STARTING JET 85 | USD 63 | Add to Cart |
| 60- | 268762 | YES | STARTING JET 105 | USD 63 | Add to Cart |
| 60- | 268763 | YES | STARTING JET 130 | USD 63 | Add to Cart |
| 60- | 268765 | YES | STARTING JET 140 | USD 63 | Add to Cart |
| 61-62 | 963281 | YES | ATTACHMENT SCREW | USD 675.46 | Add to Cart |
| 62 | 631772 | YES | O-RING | USD 44.08 | Add to Cart |
| 63 | 950141 | YES | GASKET RING A8 x 13 | USD 1.57 | Add to Cart |
| 64 | 941853 | YES | FUEL LINE CONNECTOR | USD 323.65 | Add to Cart |
| 65- | 851072 | YES | CARB SUPPORT CYL 1/3 | USD 55.68 | Add to Cart |
| 65- | 851074 | YES | CARB SUPPORT CYL 2/4 | USD 55.68 | Add to Cart |
| 66 | 240761 | YES | SLOTTED HEAD SCREW M5 X 16 | USD 12.49 | Add to Cart |
| 67 | 241440 | YES | ADJUSTMENT SCREW M6X0.75 | USD 37.66 | Add to Cart |
| 68 | 942541 | YES | HEX NUT M6 X 0.75 | USD 24.65 | Add to Cart |
| 69 | 861640 | YES | BENT TUBE ASSY. | USD 157.38 | Add to Cart |
| 70 | 963010 | YES | SLEEVE FOR CABLE SUPPORT | USD 24.62 | Add to Cart |
| 71 | 996946 | YES | GASKET SET CARBURETOR 912/912S | USD 418.37 | Add to Cart |
| 72 | NO | USD 0 | Add to Cart |
