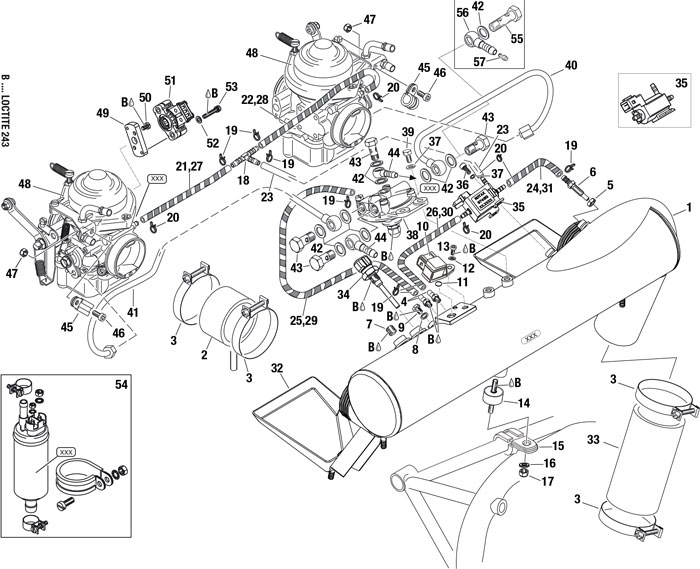

fig. 73-10-00-3
AIRBOX ASSY., 3-WAY SOLENOID VALVE ASSY., FUEL PRESSURE REGULATOR ASSY. For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-33 | 667574 | YES | AIR BOX SET | USD 3436.97 | Add to Cart |
| 2 | 860985 | YES | CONNECTING HOSE 35MM | USD 97.12 | Add to Cart |
| 3 | 853595 | YES | HOSE CLAMP, 59 | USD 26.92 | Add to Cart |
| 4 | 940551 | YES | HOSE NIPPLE M6 | USD 139.09 | Add to Cart |
| 5 | 242032 | YES | HEX NUT BM6 | USD 0.7 | Add to Cart |
| 6 | 940555 | YES | HOSE NIPPLE M6 | USD 231.44 | Add to Cart |
| 7 | 240481 | YES | PLUG SCREW 1/8-27NPT | USD 26.95 | Add to Cart |
| 8 | 230415 | YES | GASKET RING A 6X10 | USD 1.97 | Add to Cart |
| 9 | 641071 | YES | HEX SCREW ISO 4017-M6x6-8.8 | USD 4.17 | Add to Cart |
| 10 | 966502 | YES | AIRBOX PRESSURE SENSOR | USD 722.05 | Add to Cart |
| 11 | 430205 | YES | O-RING 6.4-1.8 | USD 1.39 | Add to Cart |
| 12 | 244216 | YES | WASHER 6.2/14/1 | USD 8.35 | Add to Cart |
| 13 | 840392 | YES | ALLEN SCREW M6x14 DIN 912 | USD 2.09 | Add to Cart |
| 14 | 960151 | YES | RUBBER BUFFER 20x15XM6 | USD 132.93 | Add to Cart |
| 15 | 853010 | YES | CABLE CLAMP 32/M6 | USD 166.3 | Add to Cart |
| 16 | 927941 | YES | WASHER 6.0/12/1 | USD 3.18 | Add to Cart |
| 17 | 842041 | YES | LOCK NUT M6 | USD 0.7 | Add to Cart |
| 18 | 874270 | YES | T-PIECE 6x6x6 | USD 30.22 | Add to Cart |
| 19 | 851370 | YES | CLAMP 8 | USD 17.67 | Add to Cart |
| 20 | 951595 | YES | CLAMP 7.3 | USD 14.58 | Add to Cart |
| 21-26 | 860660 | YES | Hose 4x7 Per Meter | USD 164.2 | Add to Cart |
| 21 | NO | USD 0 | Add to Cart | ||
| 22 | NO | USD 0 | Add to Cart | ||
| 22 | NO | USD 0 | Add to Cart | ||
| 23 | NO | USD 0 | Add to Cart | ||
| 23 | NO | USD 0 | Add to Cart | ||
| 24 | NO | USD 0 | Add to Cart | ||
| 24 | NO | USD 0 | Add to Cart | ||
| 25 | NO | USD 0 | Add to Cart | ||
| 26 | NO | USD 0 | Add to Cart | ||
| 26 | NO | USD 0 | Add to Cart | ||
| 27-31 | 966060 | YES | SPIRAL WRAP 6.5x8.5x0.6 | USD 86.76 | Add to Cart |
| 28 | NO | USD 0 | Add to Cart | ||
| 29 | NO | USD 0 | Add to Cart | ||
| 30 | NO | USD 0 | Add to Cart | ||
| 31 | NO | USD 0 | Add to Cart | ||
| 32 | 874680 | YES | DRIP TRAY SET | USD 487.46 | Add to Cart |
| 33 | 860984 | YES | AIR INTAKE HOSE | USD 225.68 | Add to Cart |
| 34 | 966435 | YES | RESISTANCE THERMOMETER | USD 1296.74 | Add to Cart |
| 34 | 966430 | YES | RESISTANCE THERMOMETER PROBE | USD 1380.29 | Add to Cart |
| 35 | 881040 | YES | 3-WAY-SOLENOID VALVE RETROFIT KIT | USD 1954.07 | Add to Cart |
| 35 | 881040 | YES | 3-WAY-SOLENOID VALVE RETROFIT KIT | USD 1954.07 | Add to Cart |
| 35 | 881040 | YES | 3-WAY-SOLENOID VALVE RETROFIT KIT | USD 1954.07 | Add to Cart |
| 36 | 840392 | YES | ALLEN SCREW M6x14 DIN 912 | USD 2.09 | Add to Cart |
| 37 | 945831 | YES | LOCK WASHER A6 DIN 128 | USD 0.7 | Add to Cart |
| 38 | 887130 | YES | FUEL PRESSURE REGULATOR | USD 1461.29 | Add to Cart |
| 39 | 241187 | YES | HEX. SCREW M6x16 | USD 0.7 | Add to Cart |
| 40 | 874290 | YES | FUEL HOSE ASSY 1/3 | USD 521.76 | Add to Cart |
| 41 | 874280 | YES | FUEL HOSE ASSY 2/4 | USD 594.59 | Add to Cart |
| 42 | 230150 | YES | GASKET RING A 10X14 | USD 1.94 | Add to Cart |
| 43 | 241073 | YES | BANJO BOLT M10X1X19 DIN 7643-6-3 | USD 112.34 | Add to Cart |
| 44 | 956314 | YES | HOSE NIPPLE | USD 105.97 | Add to Cart |
| 45 | 851116 | YES | CABLE CLAMP 5/M5 | USD 142.77 | Add to Cart |
| 46 | 241842 | YES | ALLEN SCREW M5x12 | USD 5.57 | Add to Cart |
| 47 | 842032 | YES | LOCK NUT M5-6.6 | USD 0.7 | Add to Cart |
| 49 | 861931 | YES | ADAPTOR FLANGE | USD 330.58 | Add to Cart |
| 50 | 640181 | YES | SLOTTED HEAD SCREW M4x7 | USD 23.14 | Add to Cart |
| 51 | 966482 | YES | THROTTLE VALVE POSITION SENSOR 1x861931 | USD 1751.83 | Add to Cart |
| 52 | 944152 | NO | Washer B 4,3 Din 4017 - M6x10 | USD 0 | Add to Cart |
| 53 | 841030 | YES | COMBINED SCREW M4X22 | USD 11.43 | Add to Cart |
| 54 | 881365 | YES | ELECTRIC FUEL PUMP SET | USD 2075.11 | Add to Cart |
| 55 | 241072 | YES | Banjo Bolt M10x1x30 | USD 52.73 | Add to Cart |
| 56 | 956314 | YES | HOSE NIPPLE | USD 105.97 | Add to Cart |
| 57 | 963143 | YES | IDLER JET 35 | USD 182.53 | Add to Cart |
| NO | USD 0 | Add to Cart |
