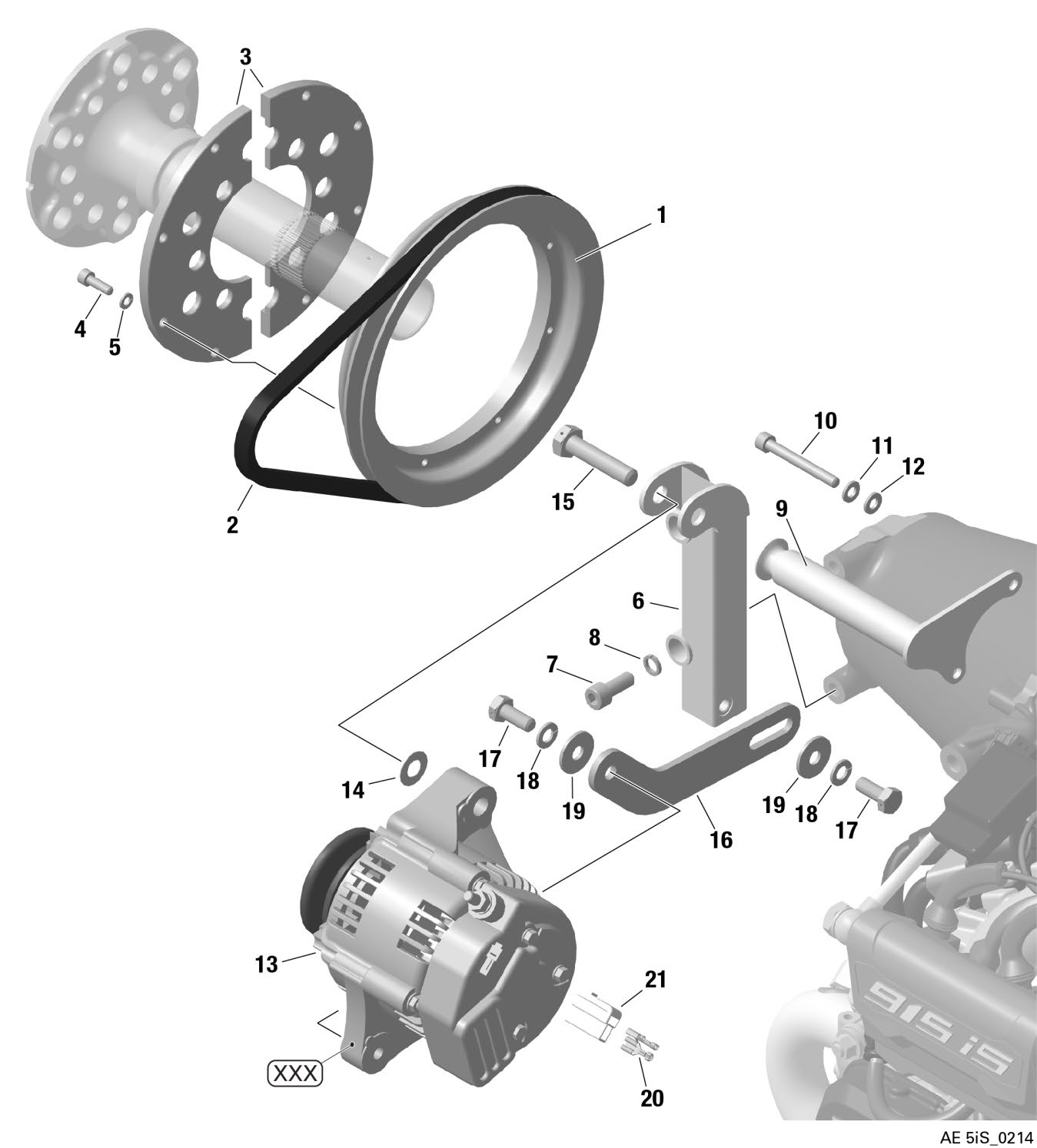

fig. 24-30-00
EXTERNAL GENERATOR F3A For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1–21 | 887251 | YES | ALTERNATOR, NIPPONDENSO | USD 2257.54 | Add to Cart |
| 1 | 980590 | YES | V-BELT PULLEY | USD 837.66 | Add to Cart |
| 2 | 980400 | YES | ALTERNATOR V BELT 9.5 x 675 | USD 25.39 | Add to Cart |
| 3 | 980605 | YES | BACKING PLATE (SINGLE, NOT PAIR) | USD 2098.38 | Add to Cart |
| 4 | 840514 | YES | ALLEN SCREW M5X16 | USD 0.7 | Add to Cart |
| 5 | 945830 | YES | LOCK WASHER A5 | USD 0.7 | Add to Cart |
| 6 | 953223 | YES | GENERATOR SUPPORT | USD 1175.53 | Add to Cart |
| 7 | 240072 | YES | ALLEN SCREW M8X29 | USD 1.39 | Add to Cart |
| 8 | 845310 | YES | LOCK WASHER VHZ M8 | USD 16.64 | Add to Cart |
| 9 | 953235 | NO | Alternator Support Assy. | USD 0 | Add to Cart |
| 10 | 241762 | YES | ALLEN SCREW M6X50 DIN 912 | USD 3.45 | Add to Cart |
| 11 | 945831 | YES | LOCK WASHER A6 DIN 128 | USD 0.7 | Add to Cart |
| 12 | 827962 | YES | WASHER 6.4 DIN 125 | USD 0.7 | Add to Cart |
| 13 | 887251 | YES | ALTERNATOR, NIPPONDENSO | USD 2257.54 | Add to Cart |
| 14 | 927952 | YES | WASHER 10.1/20/0.5 | USD 24.96 | Add to Cart |
| 15 | 941637 | NO | Hex. Screw M10x45-sk-din 931 | USD 0 | Add to Cart |
| 16 | 953241 | YES | TENSION BAR | USD 95.68 | Add to Cart |
| 17 | 940596 | YES | HEX SCREW M8x20 SK-DIN 933, DRILLED HEAD | USD 83.01 | Add to Cart |
| 18 | 945832 | YES | LOCK WASHER A8 | USD 0.7 | Add to Cart |
| 19 | 227936 | YES | WASHER ISO 7093-1 - 8 - 200 HV | USD 0.7 | Add to Cart |
| 20 | 864011 | YES | FASTON CONNECTOR 6.3 X .8 | USD 4.17 | Add to Cart |
| 21 | 265255 | YES | CONNECTOR HOUSING 2-POLE | USD 220.07 | Add to Cart |
