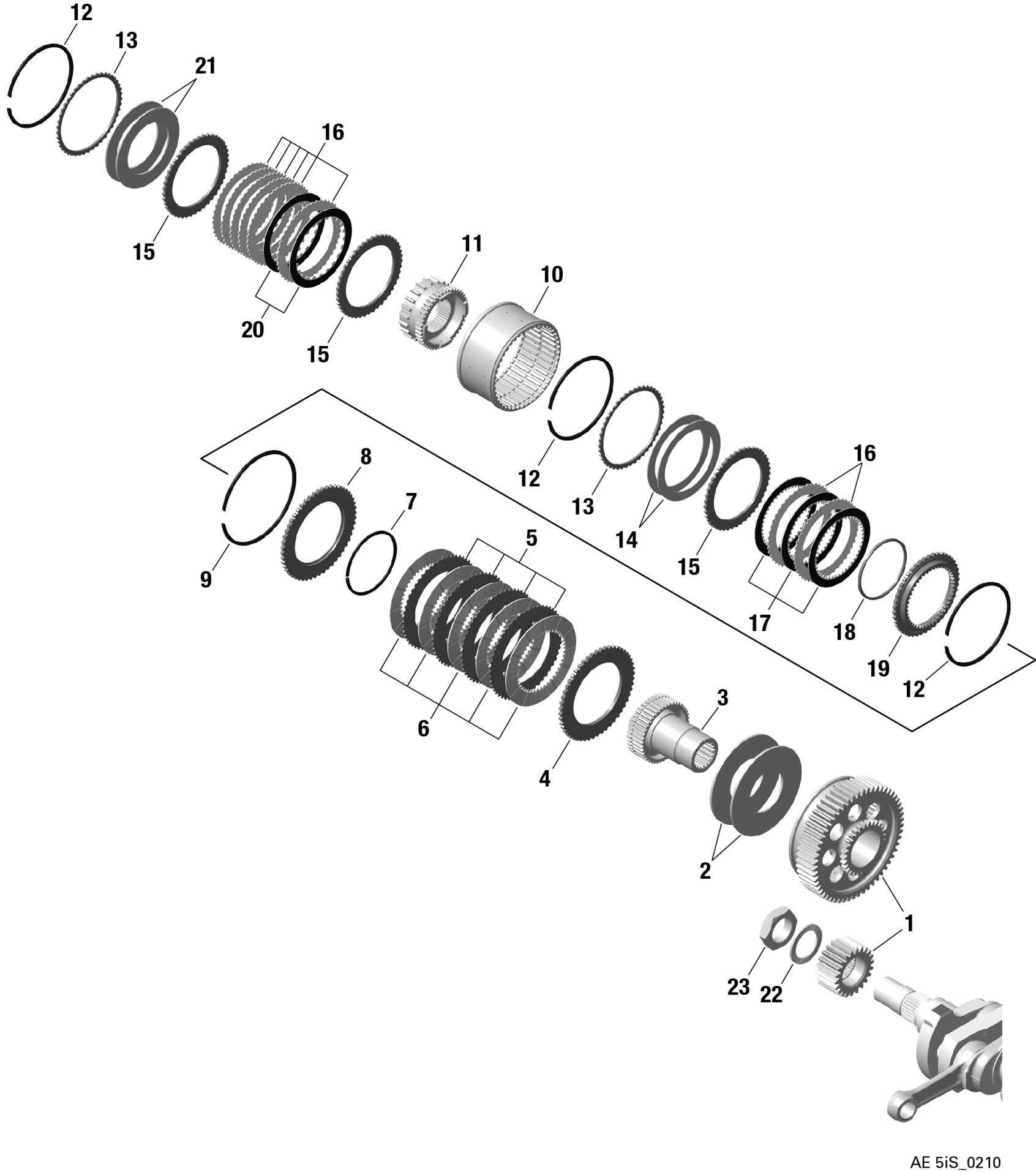

fig. 72-10-00-b
OVERLOAD CLUTCH For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-9 | 958414 | YES | OVERLOAD CLUTCH ASSY. 56 T | USD 8681.52 | Add to Cart |
| 1 | 886081 | NO | Gear Set I 2,54 | USD 0 | Add to Cart |
| 2 | 938092 | YES | DISK SPRING 102X49X2,9 | USD 514.68 | Add to Cart |
| 3 | 837233 | YES | INTERMEDIATE SHAFT | USD 3351.28 | Add to Cart |
| 4 | 958400 | YES | Steel Friction Plate 4.0 Mm | USD 425.54 | Add to Cart |
| 5 | 958160 | YES | Steel Friction Plate 1.0 | USD 78.48 | Add to Cart |
| 6 | 958176 | YES | Sinter Friction Plate 1.8 Mm | USD 728.95 | Add to Cart |
| 7 | 945080 | YES | Circlip Sw 68 | USD 8.02 | Add to Cart |
| 8 | 958402 | YES | Steel Friction Plate 4,0 Mm | USD 0 | Add to Cart |
| 9 | 945075 | YES | Circlip Sb 105 | USD 16.34 | Add to Cart |
| 10–21 | 958419 | YES | DAMPING CLUTCH ASSY. | USD 7254.9 | Add to Cart |
| 10 | 958042 | NO | Clutch Drum | USD 0 | Add to Cart |
| 11 | 958022 | NO | Clutch Hub | USD 0 | Add to Cart |
| 12 | 945070 | YES | Circlip Sb 93 | USD 21.84 | Add to Cart |
| 13 | 927021 | YES | Support Ring | USD 280.7 | Add to Cart |
| 14 | 938098 | YES | Disk Spring 91.5x71x1.5 | USD 290.94 | Add to Cart |
| 15 | 959420 | YES | Steel Friction Plate 3.0 Mm | USD 242.83 | Add to Cart |
| 16 | 958932 | YES | STEEL FRICTION PLATE 1.0mm | USD 48.68 | Add to Cart |
| 17 | 958993 | YES | Friction Plate 1.54 Mm | USD 794.36 | Add to Cart |
| 18 | 847895 | YES | Spacer Ring 69/64.1/3.0 | USD 143.72 | Add to Cart |
| 19 | NO | USD 0 | Add to Cart | ||
| 20 | 958994 | YES | Friction Plate 1.54 Mm | USD 728.32 | Add to Cart |
| 21 | 938099 | YES | Disk Spring 91.5x60x2.1 | USD 283.99 | Add to Cart |
| 22 | 845431 | YES | FRICTION WASHER VS30 | USD 27.7 | Add to Cart |
| 23 | 842579 | YES | HEX NUT M30 x 1.5 12MM LH | USD 195.01 | Add to Cart |
| NO | USD 0 | Add to Cart |
