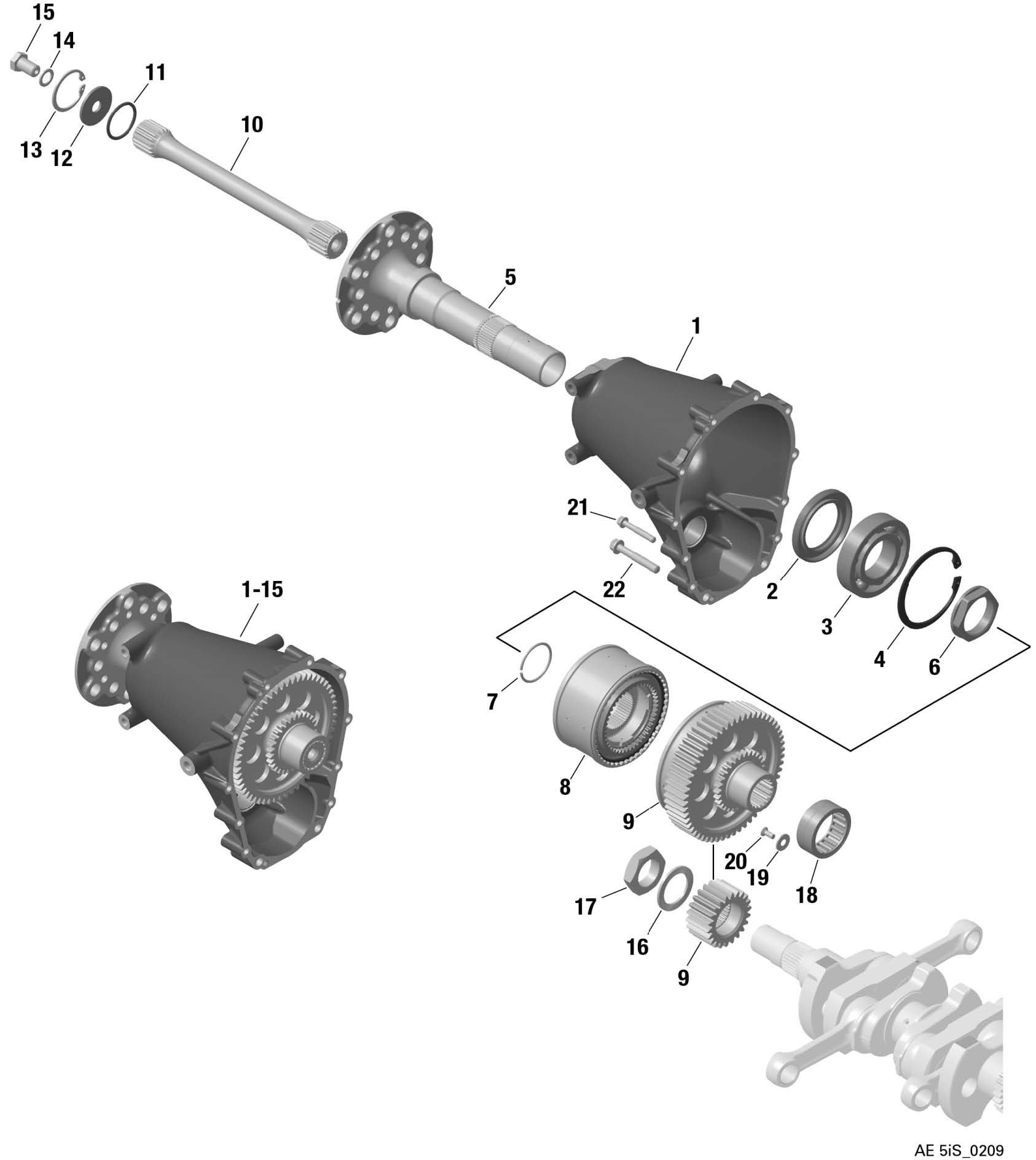

fig. 72-10-00-a
PROPELLER GEAR ASSY. For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-15 | NO | USD 0 | Add to Cart | ||
| 1 | 911286 | NO | Gearbox Housing Assy. | USD 0 | Add to Cart |
| 2 | 950091 | YES | OIL SEAL AS 48X72X8 FKM | USD 91.24 | Add to Cart |
| 3 | 832062 | YES | B. BEARING 6208 TN9 C3PAB4F 40-80-18 | USD 803.53 | Add to Cart |
| 4 | 845121 | YES | RETAINING RING 80X2,85 | USD 102.02 | Add to Cart |
| 5 | 837225 | YES | PROPELLER SHAFT | USD 5419.58 | Add to Cart |
| 6 | 942320 | YES | COLLAR NUT M40X1,5 LH | USD 206.22 | Add to Cart |
| 7 | 245935 | YES | RETAINING RING A 38 DIN 7993 | USD 9.71 | Add to Cart |
| 8 | 958419 | YES | DAMPING CLUTCH ASSY. | USD 7254.9 | Add to Cart |
| 9 | 958414 | YES | OVERLOAD CLUTCH ASSY. 56 T | USD 8681.52 | Add to Cart |
| 10 | 837201 | YES | TORSION SHAFT | USD 3394.23 | Add to Cart |
| 11 | 230915 | YES | O-RING DIN 3771-33X3-N, FPM 75 | USD 46.13 | Add to Cart |
| 12 | 827470 | YES | Sealing Washer 40x12,1x2x5) | USD 31.36 | Add to Cart |
| 13 | 945880 | YES | RETAINING RING 40X1,75 | USD 10.38 | Add to Cart |
| 14 | 250646 | YES | GASKET RING | USD 0.94 | Add to Cart |
| 15 | 841150 | YES | Hex Screw M12 X 20 A2-70 | USD 58.75 | Add to Cart |
| 16 | 845431 | YES | FRICTION WASHER VS30 | USD 27.7 | Add to Cart |
| 17 | 842579 | YES | HEX NUT M30 x 1.5 12MM LH | USD 195.01 | Add to Cart |
| 18 | NO | USD 0 | Add to Cart | ||
| 19 | NO | USD 0 | Add to Cart | ||
| 20 | NO | USD 0 | Add to Cart | ||
| 21 | 440282 | YES | SK/TORX-FLANGE SCREW M6X40-SW8/T30 | USD 2.75 | Add to Cart |
| 22 | 940077 | YES | HEX./TORX-FLANGE SCREW M8X45-SW10/T40 | USD 9.71 | Add to Cart |
