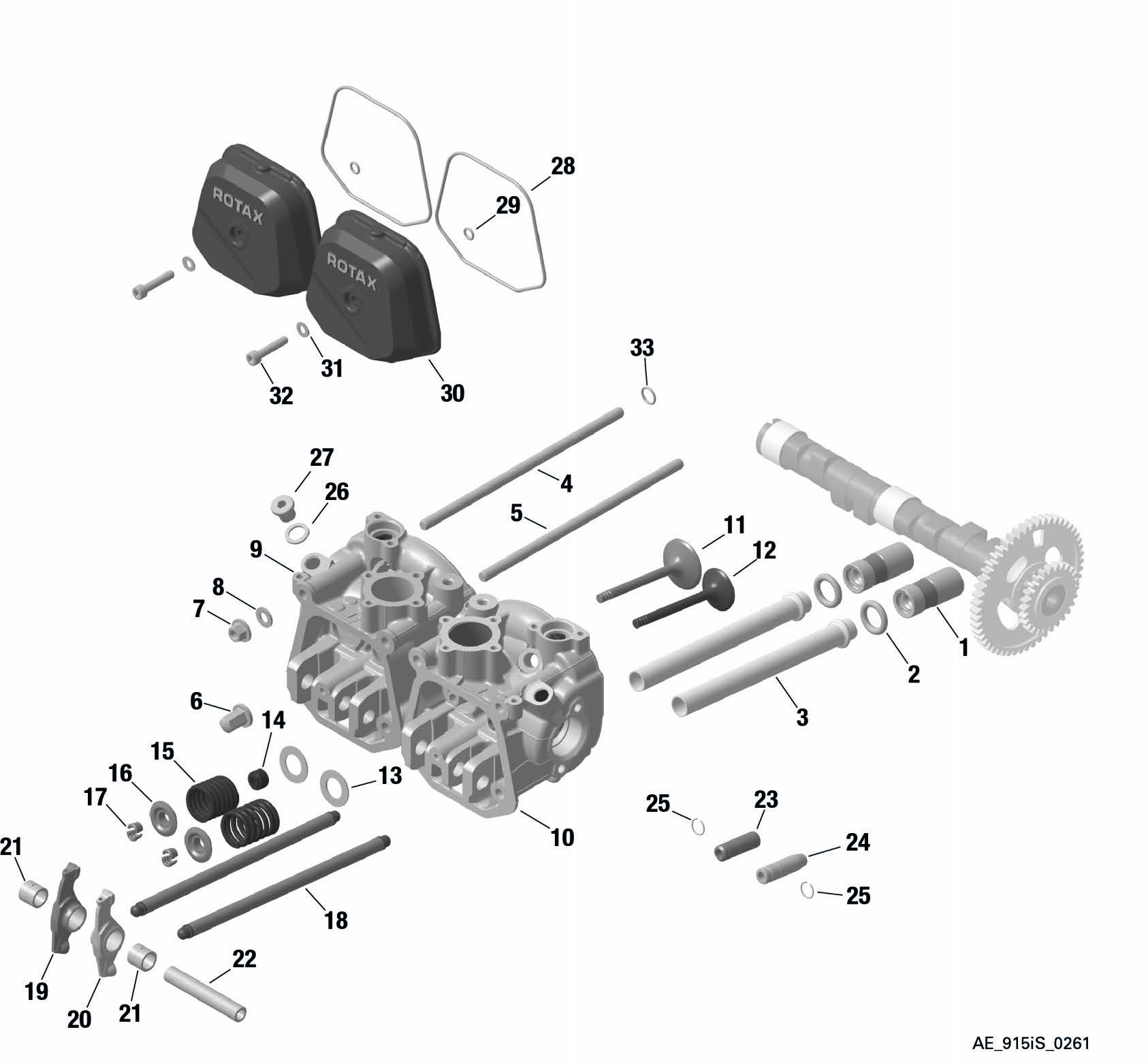

fig. 72-20-00-c
CAMSHAFT, VALVE TRAIN, CYLINDER HEAD, VALVE COVER For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 881832 | YES | HYDRAULIC VALVE TAPPET SET | USD 2407.8 | Add to Cart |
| 2 | 850930 | YES | O-RING 16x5 | USD 11.07 | Add to Cart |
| 3 | 924440 | YES | RETURN TUBE | USD 34.83 | Add to Cart |
| 4 | 840171 | YES | STUD M8 x 200 | USD 53.8 | Add to Cart |
| 5 | 840141 | YES | STUD M8 x 186 | USD 52.24 | Add to Cart |
| 6 | 842476 | YES | COLLAR CAP NUT M8 | USD 156.01 | Add to Cart |
| 7 | 942302 | YES | COLLAR NUT M8 | USD 131.94 | Add to Cart |
| 8 | 250315 | YES | WASHER 8,4 DIN 125 | USD 0.7 | Add to Cart |
| 9 | 623779 | YES | CYLINDERHEAD 2/3 ASSY. | USD 4603.61 | Add to Cart |
| 10 | 623789 | YES | CYLINDERHEAD 1/4 ASSY. | USD 4724.62 | Add to Cart |
| 11 | 854102 | YES | INTAKE VALVE 38 MM | USD 288.28 | Add to Cart |
| 12 | 854585 | YES | EXHAUST VALVE 32MM | USD 552.93 | Add to Cart |
| 13 | 926210 | YES | SHIM, VALVE SPRING SUPPORT | USD 8.35 | Add to Cart |
| 14 | 230810 | YES | VALVE STEM SEAL | USD 14.58 | Add to Cart |
| 15 | 838156 | YES | VALVE SPRING | USD 75.29 | Add to Cart |
| 16 | 854188 | NO | Valve Spring Retainer | USD 0 | Add to Cart |
| 17 | 253092 | YES | VALVE COTTER | USD 11.77 | Add to Cart |
| 18 | 854862 | YES | PUSH ROD ASSY. | USD 194.54 | Add to Cart |
| 19 | 854387 | YES | ROCKER ARM LEFT | USD 820.74 | Add to Cart |
| 20 | 854397 | YES | ROCKER ARM RIGHT | USD 820.74 | Add to Cart |
| 21 | 933396 | YES | BUSHING | USD 219.27 | Add to Cart |
| 22 | 854193 | YES | ROCKER ARM SHAFT | USD 133.93 | Add to Cart |
| 23 | 854225 | YES | Valve Guide 912s | USD 0 | Add to Cart |
| 24 | 253114 | YES | INLET VALVE GUIDE | USD 48.68 | Add to Cart |
| 25 | 245440 | YES | CIRCLIP 12 | USD 2.09 | Add to Cart |
| 26 | 250015 | YES | Sealing Ring A12x18 Din 7603 | USD 1.24 | Add to Cart |
| 27 | 841923 | YES | PLUG SCREW M12X1,5 DIN 908 | USD 32.33 | Add to Cart |
| 28 | 250285 | YES | O-RING VALVE COVER 105-2.5-N DIN 3771 | USD 30.22 | Add to Cart |
| 29 | 430205 | YES | O-RING 6.4-1.8 | USD 1.39 | Add to Cart |
| 30 | 612265 | YES | VALVE COVER SKY BLUE | USD 247.16 | Add to Cart |
| 31 | 927941 | YES | WASHER 6.0/12/1 | USD 3.18 | Add to Cart |
| 32 | 840887 | YES | ALLEN SCREW M6 x 30 | USD 5.2 | Add to Cart |
| 33 | 431570 | YES | O-RING DIN 3771-10,82X1,78-N, FPM 70 | USD 1.39 | Add to Cart |
