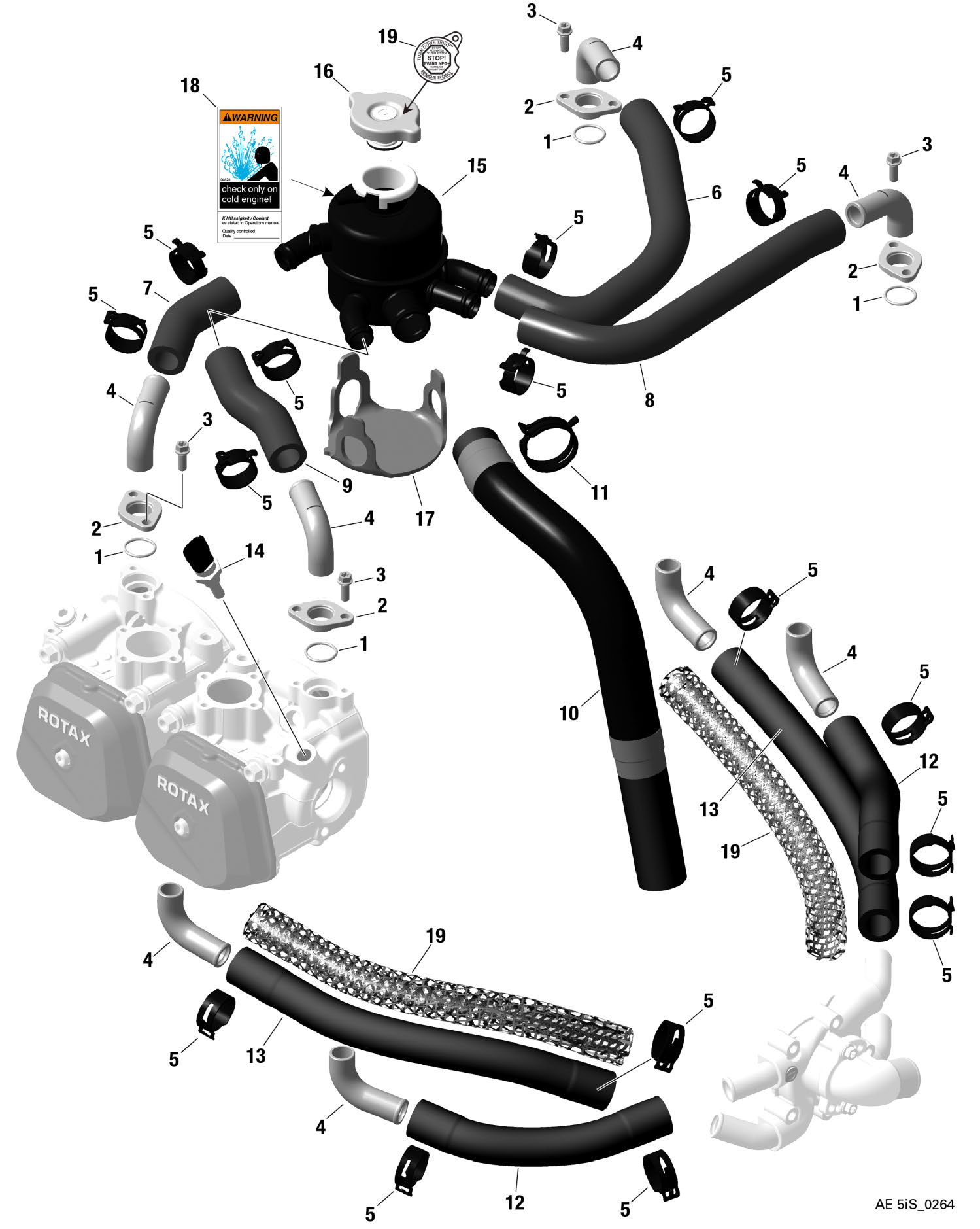

fig. 75-20-00-b
EXPANSION TANK WITH HOSES AND CONNECTIONS For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 950180 | YES | O-RING 19-2 | USD 2.75 | Add to Cart |
| 2 | 922303 | YES | MANIFOLD FLANGE | USD 66.23 | Add to Cart |
| 3 | 440162 | YES | HEX./TORX-FLANGE SCREW M6X16-SW8/T30-400 | USD 1.3 | Add to Cart |
| 4 | 922236 | YES | BENT SOCKET 80 DEGREES | USD 80.95 | Add to Cart |
| 5 | 851645 | YES | SELF COMPENSATING CLAMP 25 | USD 12.49 | Add to Cart |
| 6 | 822423 | YES | FORM HOSE CYL.1 | USD 281.22 | Add to Cart |
| 6 | 822420 | YES | Form Hose 1 | USD 76.31 | Add to Cart |
| 7 | 822433 | YES | FORM HOSE CYL.2 | USD 180.2 | Add to Cart |
| 7 | 822430 | YES | Form Hose 2 | USD 23.5 | Add to Cart |
| 8 | 822443 | YES | FORM HOSE CYL.3 | USD 247.38 | Add to Cart |
| 8 | 822440 | YES | FORM HOSE 3 | USD 73.69 | Add to Cart |
| 9 | 822448 | YES | FORM HOSE CYL.4 | USD 168.19 | Add to Cart |
| 9 | 822445 | YES | Form Hose 4 | USD 38.46 | Add to Cart |
| 10 | 822450 | YES | Form Hose | USD 152.16 | Add to Cart |
| 10 | 822454 | YES | FORM HOSE 378 MM | USD 426.28 | Add to Cart |
| 11 | 951350 | YES | SELF COMPENSATING CLAMP 35 | USD 28.48 | Add to Cart |
| 12 | 922368 | YES | Water Tube 180mm +/- 3mm | USD 251.52 | Add to Cart |
| 12 | 922360 | YES | WATER TUBE 17/180 MM | USD 78.48 | Add to Cart |
| 13 | 922369 | YES | Water Tube 280mm +/- 3mm | USD 315.96 | Add to Cart |
| 13 | 922362 | YES | WATER TUBE 17/280 MM | USD 115.76 | Add to Cart |
| 14 | 965537 | YES | TEMPERATURE SENSOR | USD 693.71 | Add to Cart |
| 15-18 | 922668 | YES | EXPANSION TANK ASSY. | USD 881.59 | Add to Cart |
| 16 | 922072 | YES | RADIATOR CAP WITH GASKET 1.2 BAR | USD 234.94 | Add to Cart |
| 17 | 860828 | YES | RUBBER PLATE | USD 74.21 | Add to Cart |
| 18 | 897506 | YES | Warning Label | USD 16.43 | Add to Cart |
| 19 | 860650 | YES | PROTECTION TUBE | USD 676.86 | Add to Cart |
