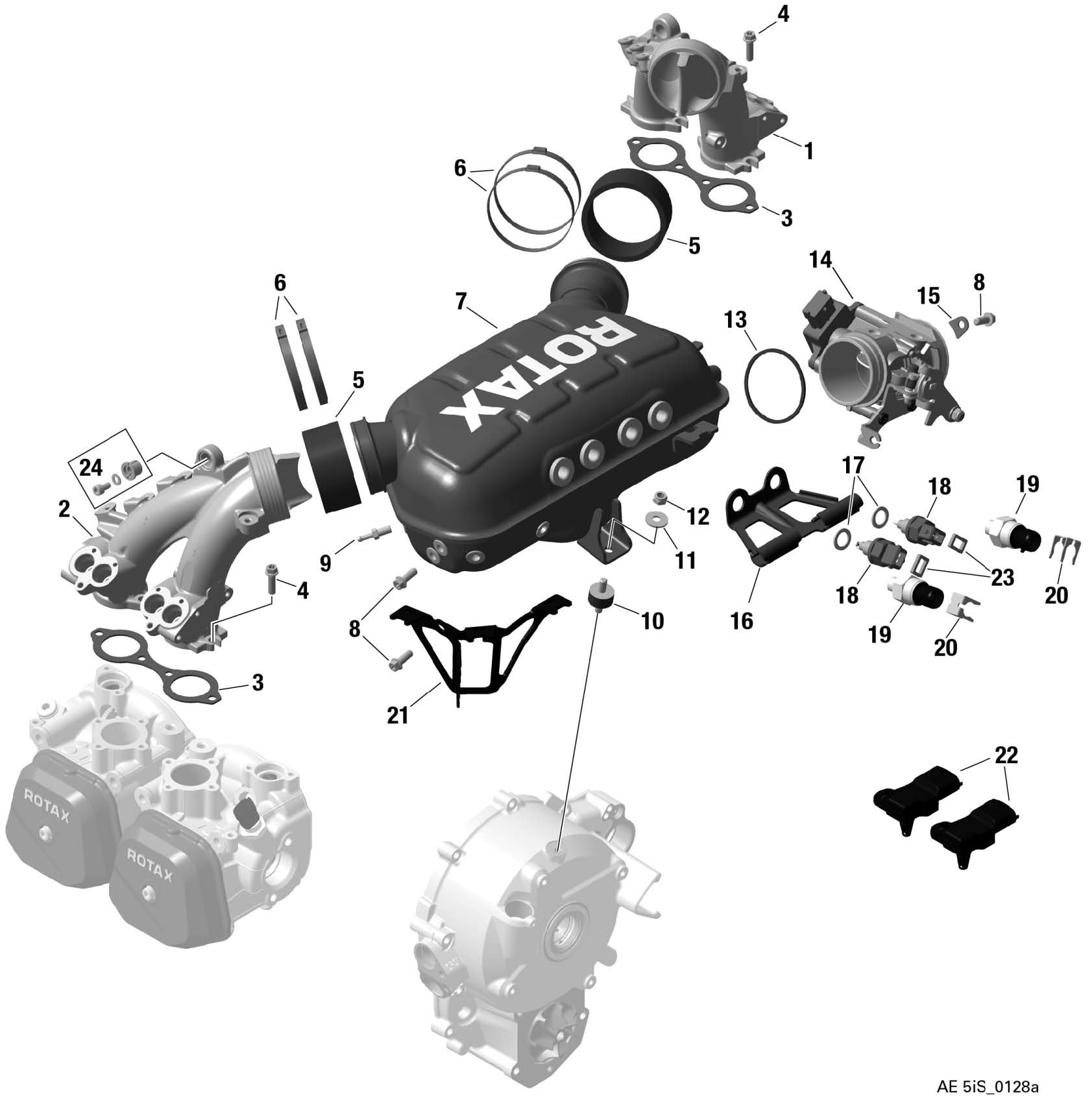

fig. 73-10-00
INTAKE MANIFOLD, AIRBOX, THROTTLE BODY SOCKET For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 667403 | YES | INTAKE MANIFOLD 1/3 | USD 1578.66 | Add to Cart |
| 2 | 667406 | YES | INTAKE MANIFOLD 2/4 | USD 905.09 | Add to Cart |
| 3 | 850091 | YES | ISOLATING FLANGE | USD 30.72 | Add to Cart |
| 4 | 440207 | YES | HEX./TORX-FLANGE SCREW M6X20-SW8/T30 | USD 3.18 | Add to Cart |
| 5 | 460421 | YES | CONNECTING SOCKET | USD 43.04 | Add to Cart |
| 6 | 953093 | YES | 1-EAR-CLAMP 66,3-69,5 MM | USD 21.02 | Add to Cart |
| 7 | 667411 | YES | Airbox | USD 3549.44 | Add to Cart |
| 8 | 440164 | YES | Hex. Torx-flange Screw M6x16-sw8/t30 Mk | USD 4.17 | Add to Cart |
| 9 | 840672 | YES | HOSE NIPPLE M6 MK | USD 176.37 | Add to Cart |
| 10 | 860700 | YES | RUBBER 20X10XM6 | USD 30.2 | Add to Cart |
| 11 | 827968 | YES | WASHER 6,4 DIN 9021 | USD 1.06 | Add to Cart |
| 12 | 842042 | YES | LOCK NUT M6 | USD 2.09 | Add to Cart |
| 13 | 850020 | YES | Rubber Ring | USD 16.64 | Add to Cart |
| 14 | 685056 | YES | Throttle Body Socket Assy. | USD 1391.88 | Add to Cart |
| 15 | 953020 | YES | Separating Plate | USD 6.26 | Add to Cart |
| 16 | 651780 | YES | CONNECTOR BRACKET | USD 177.29 | Add to Cart |
| 17 | 250015 | YES | Sealing Ring A12x18 Din 7603 | USD 1.24 | Add to Cart |
| 18 | 222421 | YES | TEMPERATURE SENSOR | USD 180.55 | Add to Cart |
| 19 | 664364 | YES | PRESSURE SENSOR 2,0 | USD 1335.32 | Add to Cart |
| 20 | 638140 | YES | CLAMP | USD 141.07 | Add to Cart |
| 21 | 951563 | NO | Connector Bracket | USD 0 | Add to Cart |
| 22 | 874654 | YES | PRESSURE-/TEMP. SENSOR | USD 1017.23 | Add to Cart |
| 23 | 850610 | YES | Connetor Gasket | USD 19.72 | Add to Cart |
| 24 | 481485 | YES | Governor Cable Kit | USD 860.01 | Add to Cart |
