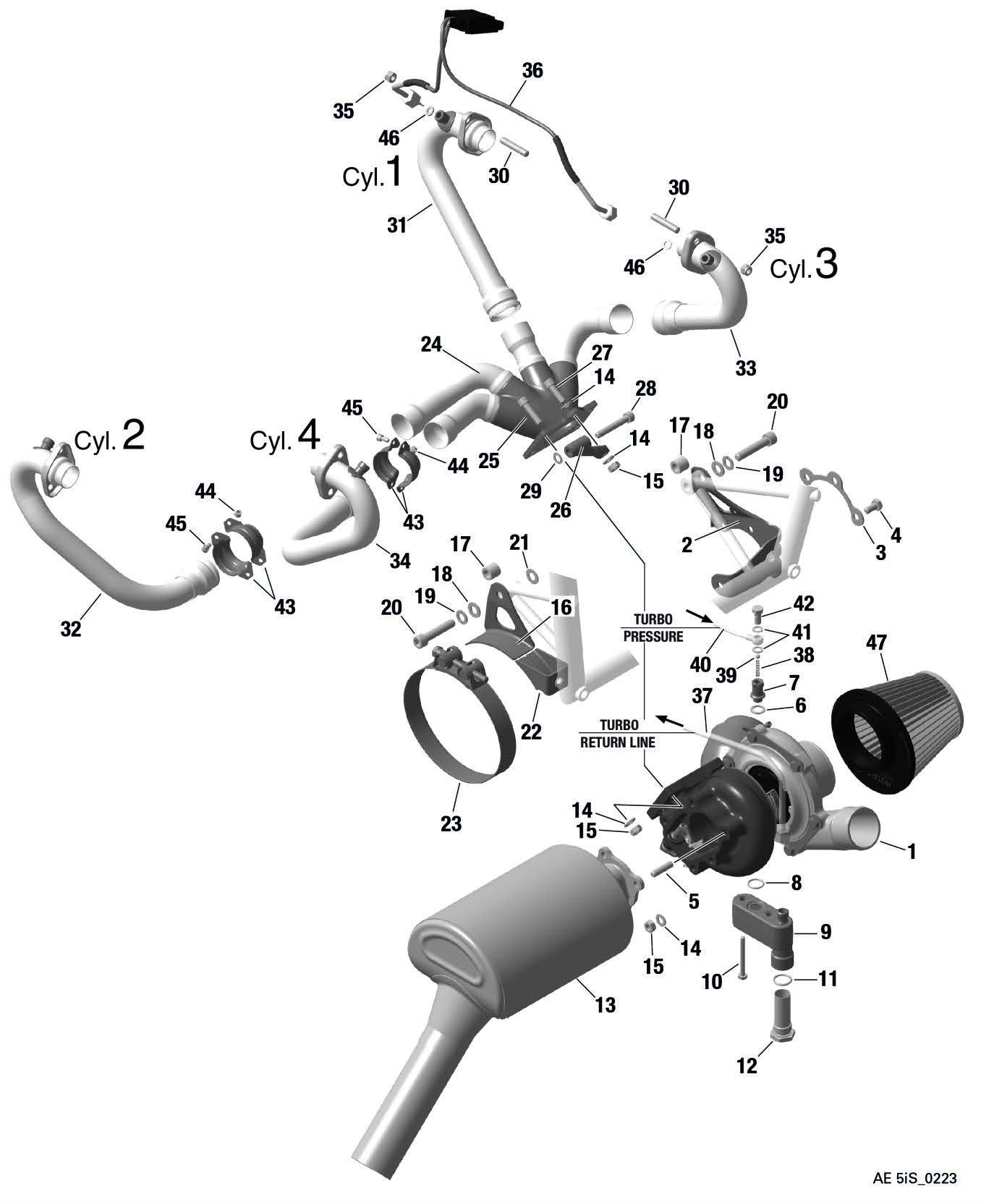

fig. 78-10-00
EXHAUST SYSTEM, EXHAUST TEMPERATURE SENSOR For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | NO | USD 0 | Add to Cart | ||
| 2 | 851296 | NO | Turbocharger Bracket | USD 0 | Add to Cart |
| 3 | 851305 | YES | Reinforcement Sheet | USD 0 | Add to Cart |
| 4 | 940583 | YES | HEX SCREW M8x16 | USD 7.29 | Add to Cart |
| 5 | 940173 | YES | STUD M8x19 | USD 20.84 | Add to Cart |
| 6 | 250646 | YES | GASKET RING | USD 0.94 | Add to Cart |
| 7 | 956489 | YES | Valve Housing | USD 0 | Add to Cart |
| 8 | 430225 | YES | O-RING 15.9-2.3 | USD 4.17 | Add to Cart |
| 9 | 656770 | YES | OIL SUMP ASSY | USD 764.76 | Add to Cart |
| 10 | 640600 | YES | HEX SCREW M6x55 SK-DIN931 | USD 54.91 | Add to Cart |
| 11 | 250057 | YES | O-RING DIN 3771-18X2,5-N, FPM 75 | USD 1.57 | Add to Cart |
| 12 | 640860 | YES | PLUG SCREW ASSY. M22x1,5 | USD 264.45 | Add to Cart |
| 13 | 979475 | YES | MUFFLER ASSY. | USD 3615.32 | Add to Cart |
| 14 | 250313 | YES | WASHER 8.4 | USD 1.06 | Add to Cart |
| 15 | 242203 | YES | HEX NUT M8 STAINLESS | USD 3.18 | Add to Cart |
| 16 | 851680 | YES | EXHAUST BRACKET | USD 237.73 | Add to Cart |
| 17 | NO | USD 0 | Add to Cart | ||
| 18 | NO | USD 0 | Add to Cart | ||
| 19 | NO | USD 0 | Add to Cart | ||
| 20 | NO | USD 0 | Add to Cart | ||
| 21 | NO | USD 0 | Add to Cart | ||
| 22 | NO | USD 0 | Add to Cart | ||
| 23 | 851445 | YES | CLAMP 140-148 | USD 364.79 | Add to Cart |
| 24 | 979563 | YES | EXHAUST MANIFOLD ASSY. | USD 2778.63 | Add to Cart |
| 25 | 840993 | YES | ALLEN SCREW M8X30 | USD 7.62 | Add to Cart |
| 26 | 953306 | YES | MANIFOLD BRACKET ASSY. | USD 918.81 | Add to Cart |
| 27 | 240073 | YES | ALLEN SCREW M8X20 DIN 912 | USD 5.2 | Add to Cart |
| 28 | 440107 | YES | ALLEN SCREW M8X50 | USD 11.43 | Add to Cart |
| 29 | 926400 | YES | WASHER 8.4/15/0.5 | USD 16.64 | Add to Cart |
| 29 | 926401 | YES | WASHER 8.4/15/1.0 | USD 17.67 | Add to Cart |
| 29 | 926402 | YES | WASHER 8.4/15/1.5 | USD 18.72 | Add to Cart |
| 30 | 940368 | YES | STUD M8X23/20 | USD 8.32 | Add to Cart |
| 31 | NO | USD 0 | Add to Cart | ||
| 32 | NO | USD 0 | Add to Cart | ||
| 33 | NO | USD 0 | Add to Cart | ||
| 34 | NO | USD 0 | Add to Cart | ||
| 35 | NO | USD 0 | Add to Cart | ||
| 36 | 866264 | YES | TEMPERATURE SENSOR | USD 1119.16 | Add to Cart |
| 37 | NO | USD 0 | Add to Cart | ||
| 38 | 239131 | YES | COMPRESSION SPRING 22 | USD 6.93 | Add to Cart |
| 39 | 232441 | YES | BALL 5,556 MM | USD 2.93 | Add to Cart |
| 40 | NO | USD 0 | Add to Cart | ||
| 41 | 950141 | YES | GASKET RING A8 x 13 | USD 1.57 | Add to Cart |
| 42 | 840730 | YES | BANJO BOLT M8x1x17 | USD 247.25 | Add to Cart |
| 43 | 979570 | YES | EXHAUST PIPE CLAMP | USD 99.59 | Add to Cart |
| 44 | 901442 | YES | HEX.NUT ISO 7042 - M5 - A2 | USD 1.39 | Add to Cart |
| 45 | 240153 | YES | ALLEN SCREW M5X10 ISO 4762-A2-70 | USD 1.39 | Add to Cart |
| 46 | 244213 | YES | WASHER 6,4 | USD 1.06 | Add to Cart |
