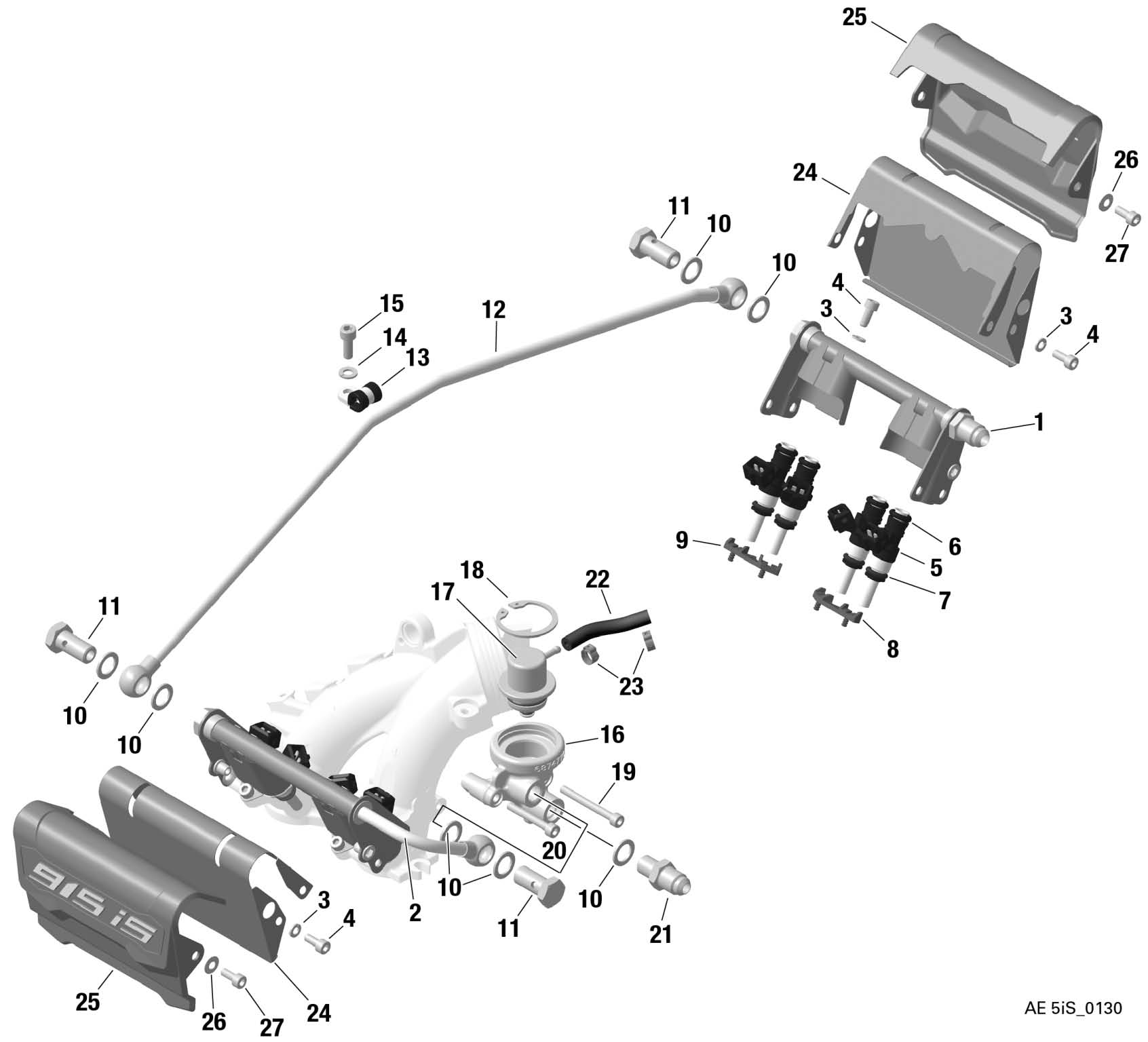

fig. 73-10-00-c
FUEL INJECTOR, FUEL RAIL, PRESSURE REGULATOR, FUEL RAIL COVER For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 874795 | YES | FUELRAIL 1/3 | USD 960.15 | Add to Cart |
| 2 | 874797 | YES | FUELRAIL 2/4 | USD 1038.56 | Add to Cart |
| 3 | 945830 | YES | LOCK WASHER A5 | USD 0.7 | Add to Cart |
| 4 | 640542 | YES | ALLEN SCREW ISO 4762 - M5x12 - 8.8 | USD 0.7 | Add to Cart |
| 5–7 | 874780 | YES | FUEL INJECTOR | USD 689.47 | Add to Cart |
| 6 | 831060 | YES | O-RING 7,52X3,51 VITON B BLACK | USD 27.16 | Add to Cart |
| 7 | 831050 | YES | O-RING 8,30X3,05 VITON B BROWN | USD 27.16 | Add to Cart |
| 8 | 860042 | YES | Damper Left | USD 15.94 | Add to Cart |
| 9 | 860040 | YES | Damper Right | USD 15.94 | Add to Cart |
| 10 | 250646 | YES | GASKET RING | USD 0.94 | Add to Cart |
| 11 | 641541 | YES | Banjo Bolt - Din 7643 - 8 - 3 | USD 70.15 | Add to Cart |
| 12 | 874802 | YES | FUEL LINE ASSY. | USD 613.15 | Add to Cart |
| 13 | 853412 | YES | Cable Clamp #8 | USD 16.64 | Add to Cart |
| 14 | 945831 | YES | LOCK WASHER A6 DIN 128 | USD 0.7 | Add to Cart |
| 15 | 241239 | YES | Allen Screw M6x16 | USD 19.75 | Add to Cart |
| 16 | 874770 | YES | Pressure Regulator Housing | USD 235.44 | Add to Cart |
| 17 | 889262 | YES | FUEL PRESSURE REGULATOR ASSY. | USD 1067.42 | Add to Cart |
| 18 | 845650 | YES | RETAINING RING 36X1,5 | USD 7.29 | Add to Cart |
| 19 | 941792 | YES | ALLEN SCREW M5X45 | USD 3.69 | Add to Cart |
| 20 | 841502 | YES | ALLEN SCREW ISO 4762 - M5x35 - 8.8 | USD 1.88 | Add to Cart |
| 21 | 840700 | YES | ADAPTER 9/16 UNF/M12x1,5 | USD 447.43 | Add to Cart |
| 22 | 960631 | YES | TUBE 60 /-3 MM | USD 37.92 | Add to Cart |
| 23 | 853653 | YES | 1-EAR-CLAMP 8,3-10 MM | USD 8.32 | Add to Cart |
| 24 | 975090 | YES | HEAT SHIELD | USD 46.13 | Add to Cart |
| 25 | 975065 | YES | COVERING FUELRAIL | USD 97.61 | Add to Cart |
| 26 | 939445 | YES | SPRING WASHER 12X5.2X0.5 | USD 7.62 | Add to Cart |
| 27 | 640542 | YES | ALLEN SCREW ISO 4762 - M5x12 - 8.8 | USD 0.7 | Add to Cart |
