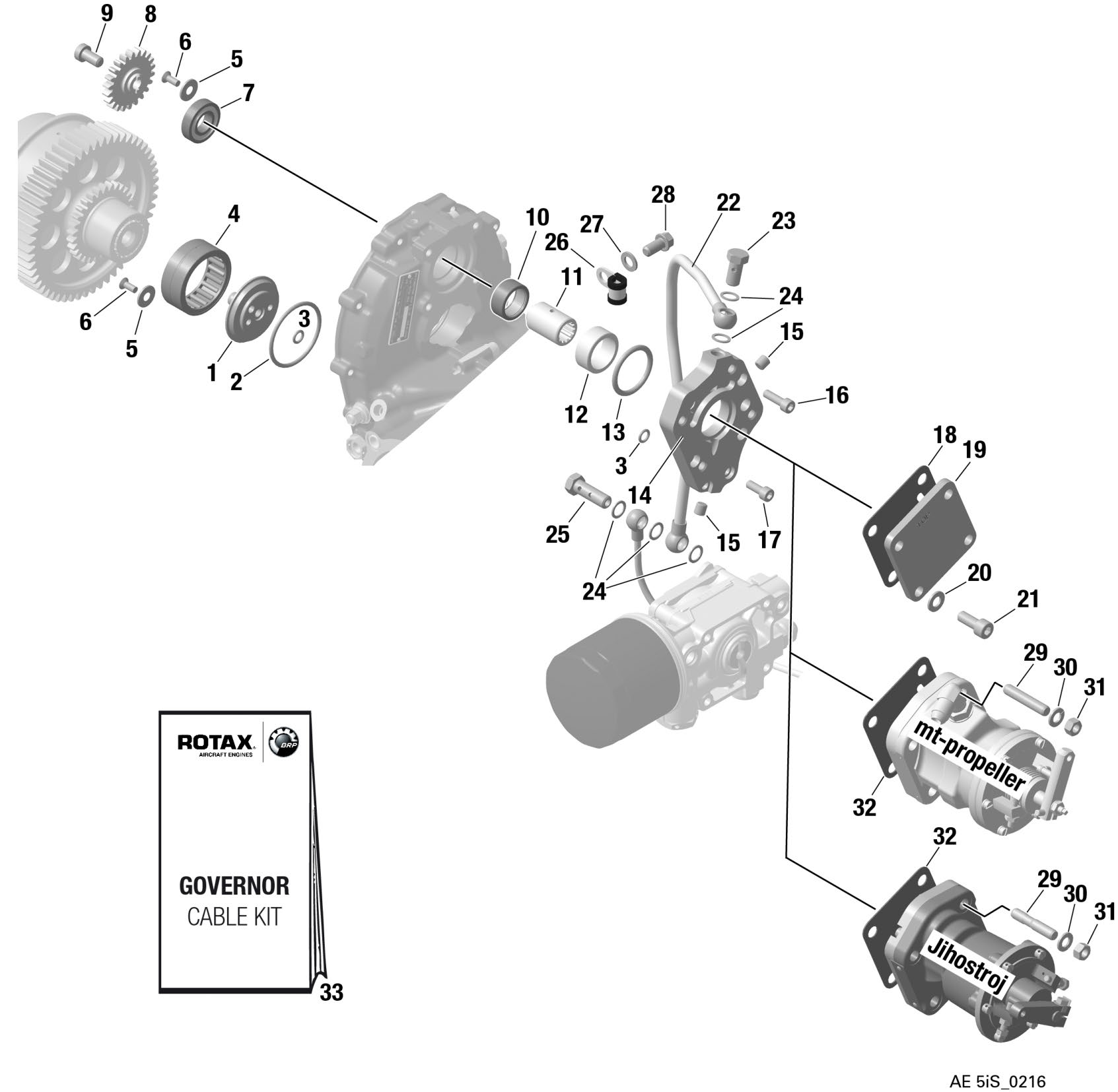

fig. 61-20-00
HYDR. GOVERNOR FOR CONSTANT SPEED PROPELLER For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Certified | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 810310 | YES | OIL INLET FLANGE | USD 725.91 | Add to Cart |
| 2 | 430175 | YES | O-RING 46X3 | USD 15.25 | Add to Cart |
| 3 | 830415 | YES | O-RING 7X2 | USD 4.17 | Add to Cart |
| 4 | 832952 | NO | Needle Bearing Rna 49/32 | USD 0 | Add to Cart |
| 5 | 227280 | YES | THRUST WASHER | USD 12.49 | Add to Cart |
| 6 | 940316 | YES | COUNTERSUNK SCREW M5X12-5.8 | USD 2.09 | Add to Cart |
| 7 | 832363 | YES | BALL BEARING 16002 C3 | USD 665.27 | Add to Cart |
| 8 | 834245 | YES | VACUUM PUMP GEAR | USD 639.77 | Add to Cart |
| 9 | 941522 | YES | ALLEN SCREW M8x16 | USD 3.45 | Add to Cart |
| 10 | 232925 | YES | NEEDLE SLEEVE 22X28X12 | USD 67.2 | Add to Cart |
| 11 | 847773 | YES | DRIVE SLEEVE | USD 1136.95 | Add to Cart |
| 12 | 847802 | YES | SPACER 25/31,95/13 | USD 317.84 | Add to Cart |
| 13 | 950380 | YES | O-RING 32X4 | USD 16.49 | Add to Cart |
| 14 | 810070 | YES | GOVERNOR FLANGE | USD 966.18 | Add to Cart |
| 15 | 941611 | YES | SCREW PLUG M8X1 | USD 22.87 | Add to Cart |
| 16 | 241935 | YES | ALLEN SCREW M6x20 DIN 912 | USD 2.09 | Add to Cart |
| 17 | 241237 | YES | ALLEN SCREW M6X16 DIN 912 | USD 0.7 | Add to Cart |
| 18 | 931770 | YES | GASKET | USD 24.96 | Add to Cart |
| 19 | 926231 | YES | COVER | USD 476.26 | Add to Cart |
| 20 | 250315 | YES | WASHER 8,4 DIN 125 | USD 0.7 | Add to Cart |
| 21 | 240072 | YES | ALLEN SCREW M8X29 | USD 1.39 | Add to Cart |
| 22 | 956460 | YES | PRESSURE OIL LINE ASSY | USD 760.91 | Add to Cart |
| 23 | 241073 | YES | BANJO BOLT M10X1X19 DIN 7643-6-3 | USD 112.34 | Add to Cart |
| 24 | 230150 | YES | GASKET RING A 10X14 | USD 1.94 | Add to Cart |
| 25 | 241072 | YES | Banjo Bolt M10x1x30 | USD 52.73 | Add to Cart |
| 26 | 853418 | YES | CABLE CLAMP 8/M8 | USD 98.63 | Add to Cart |
| 27 | 944131 | YES | WASHER 8 | USD 4.17 | Add to Cart |
| 28 | 440854 | YES | Hex/torx-flange Screw M8x16 | USD 2.78 | Add to Cart |
| 29 | 840711 | YES | STUD M8X21/20 | USD 153.06 | Add to Cart |
| 30 | 945832 | YES | LOCK WASHER A8 | USD 0.7 | Add to Cart |
| 31 | 942674 | YES | HEX. NUT M8 (WS 11mm) | USD 23.93 | Add to Cart |
| 32 | 931372 | YES | GASKET | USD 447.47 | Add to Cart |
| 33 | NO | USD 0 | Add to Cart | ||
| NO | USD 0 | Add to Cart |
